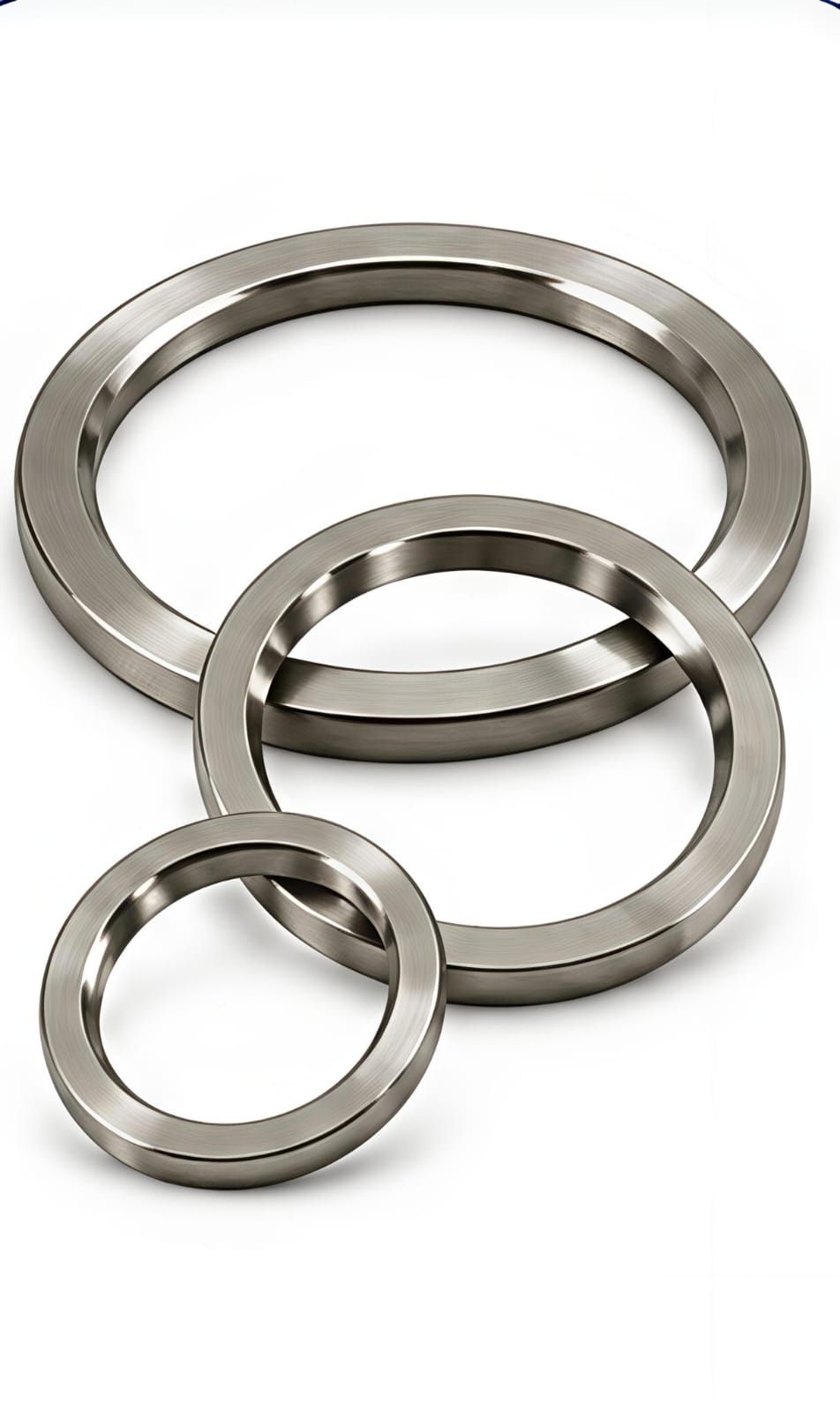

The working of ring joint gaskets (RTJ Gasket) can be explained by the axial compressive load causing them to deform and flow to irregularities in the flange grooves that it seals. As load bearing area of ring joint gaskets (RTJ Gasket) are small high surface stresses are produced between the sealing face and the groove
ITEM DESCRIPTION:
As a result of Metal to Metal sealing media they are made to be free of indentations, tool marks etc and have a surface finish of maximum, Ring Type Joint Gasket (RTJ Gasket)
R, RX – 63 microinches Ra (1.6 micrometer Ra).
BX – 32 microinches Ra (0.8 micrometer Ra).
The working of ring joint gaskets (RTJ Gasket) can be explained by the axial compressive load causing them to deform and flow to irregularities in the flange grooves that it seals. As load bearing area of ring joint gaskets (RTJ Gasket) are small high surface stresses are produced between the sealing face and the groove, making it poor in recovery characteristics and unfit for reuse.
Type - R, RX, BX ring joint gaskets (RTJ Gasket) in API 6A, ASME B16.20 gasket standards for API 6B, ASME B16.5 and API 6BX flanges respectively.
The working of ring joint gaskets (RTJ Gasket) can be explained by the axial compressive load causing them to deform and flow to irregularities in the flange grooves that it seals. As load bearing area of ring joint gaskets (RTJ Gasket) are small high surface stresses are produced between the sealing face and the groove

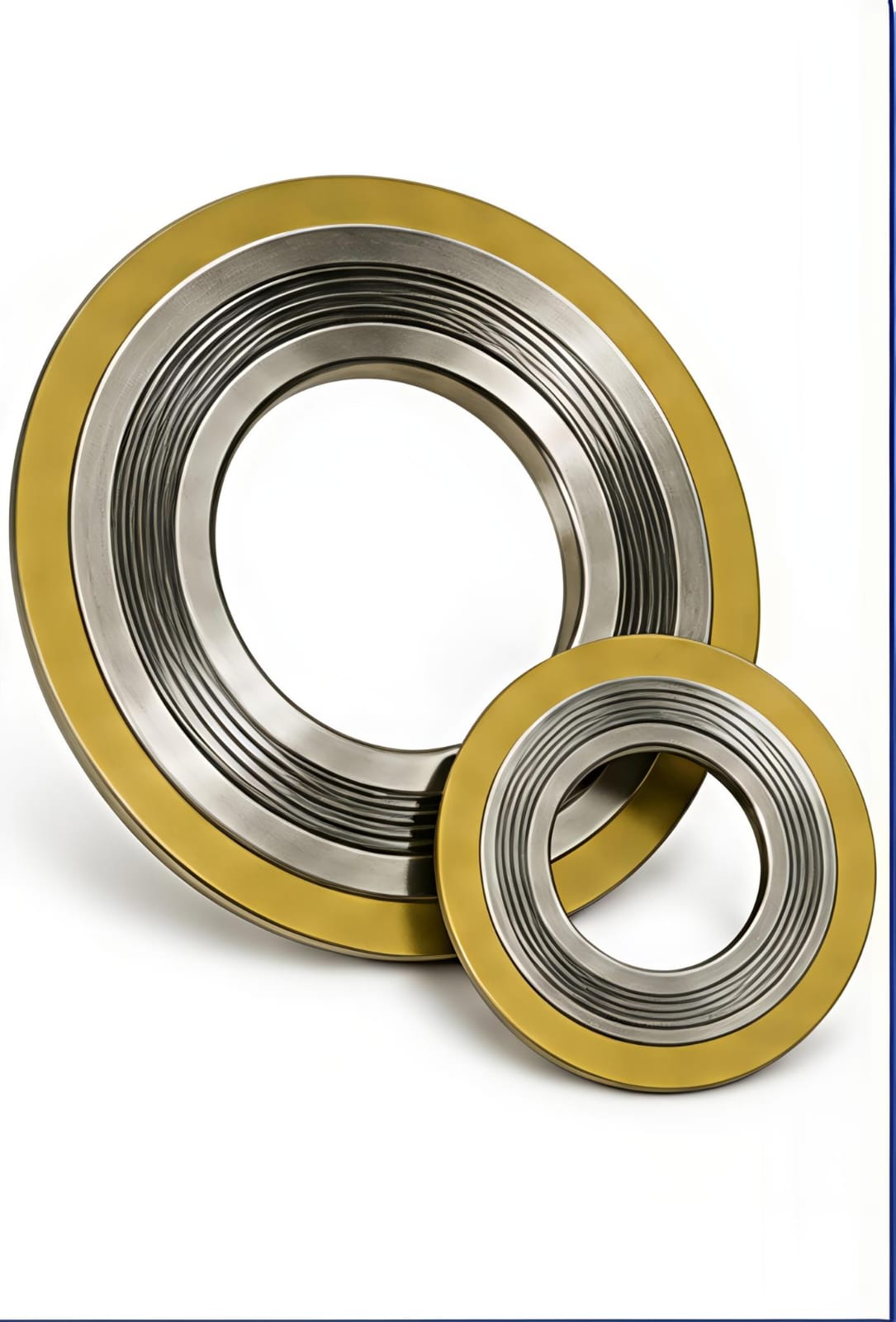

Compatible with the flange closure in which it is to be used, spiral wound gaskets (SPW Gaskets) can be used over the complete temperature range from cryogenic to approximately 2000°F and in all pressures from vacuum to the standard 2500 psi flange ratings making it a high pressure and high temperature gasket.
Our Octagonal Gaskets are compatible to use with modern design octagonal type grooved flanges and with specially grooved flanges so that the gasket and the flange remain tightly pressed against each other, avoiding leakages.
Use of dissimilar metallic flanges with a conductive gasket material assisted by a suitable electrolyte sets up a galvanic cell, corroding the anodic metal. It is here that the flange insulating kit gasket or insulation kit comes into use protecting pipeline flange corrosion.

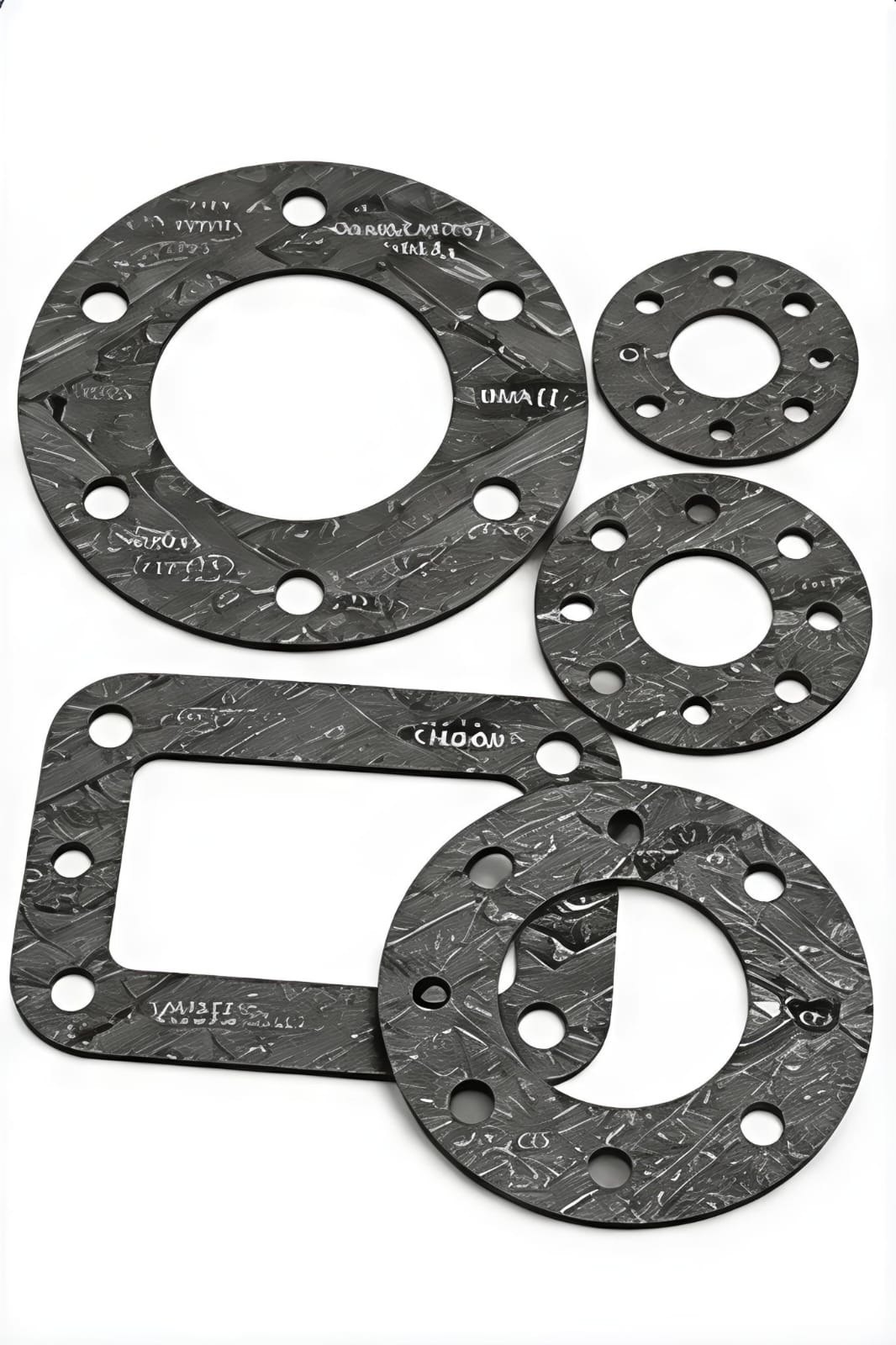

Our Graphite Filler Gaskets maintain dimensional stability even under high pressures and temperature fluctuations, especially in the chemical industry.
