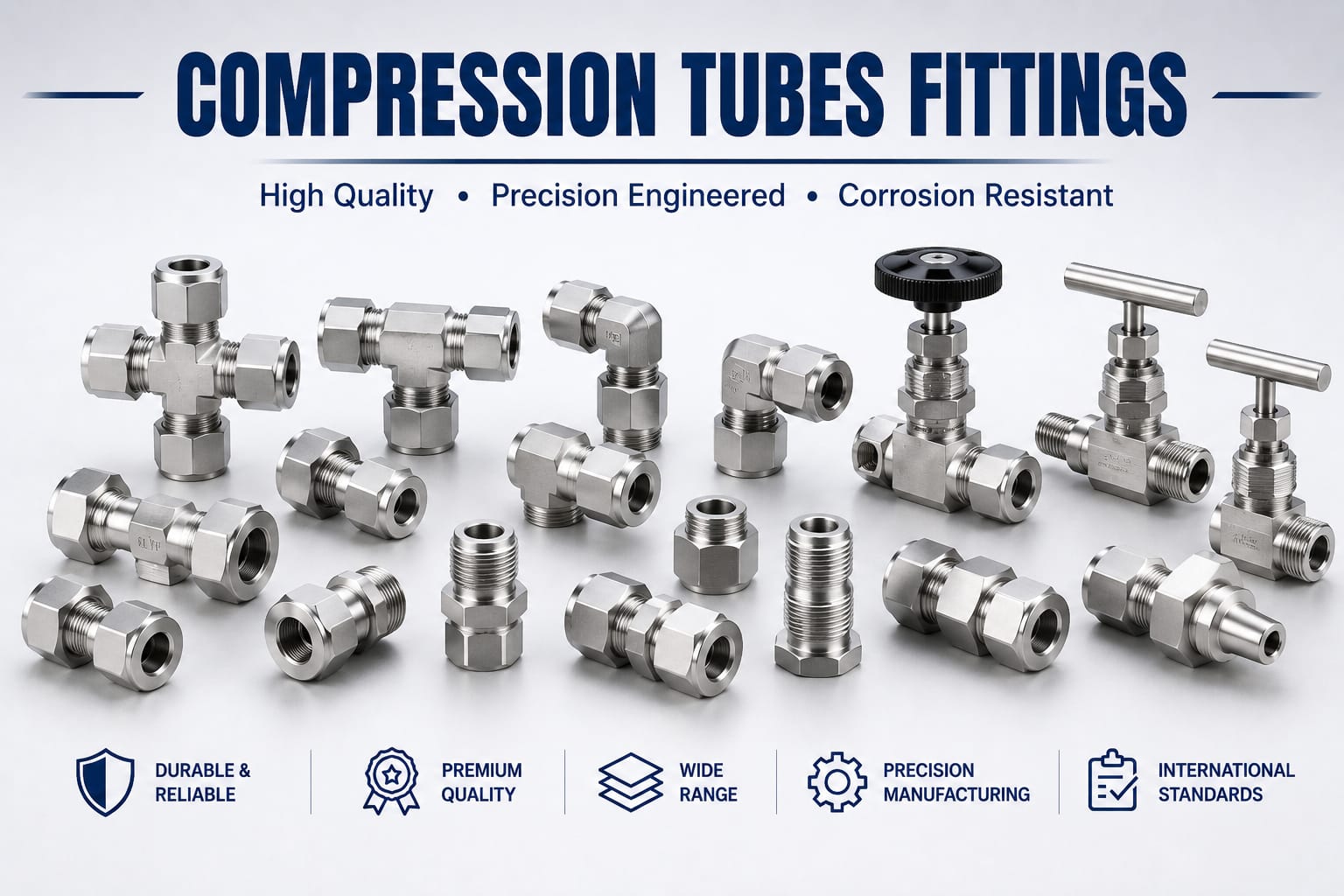

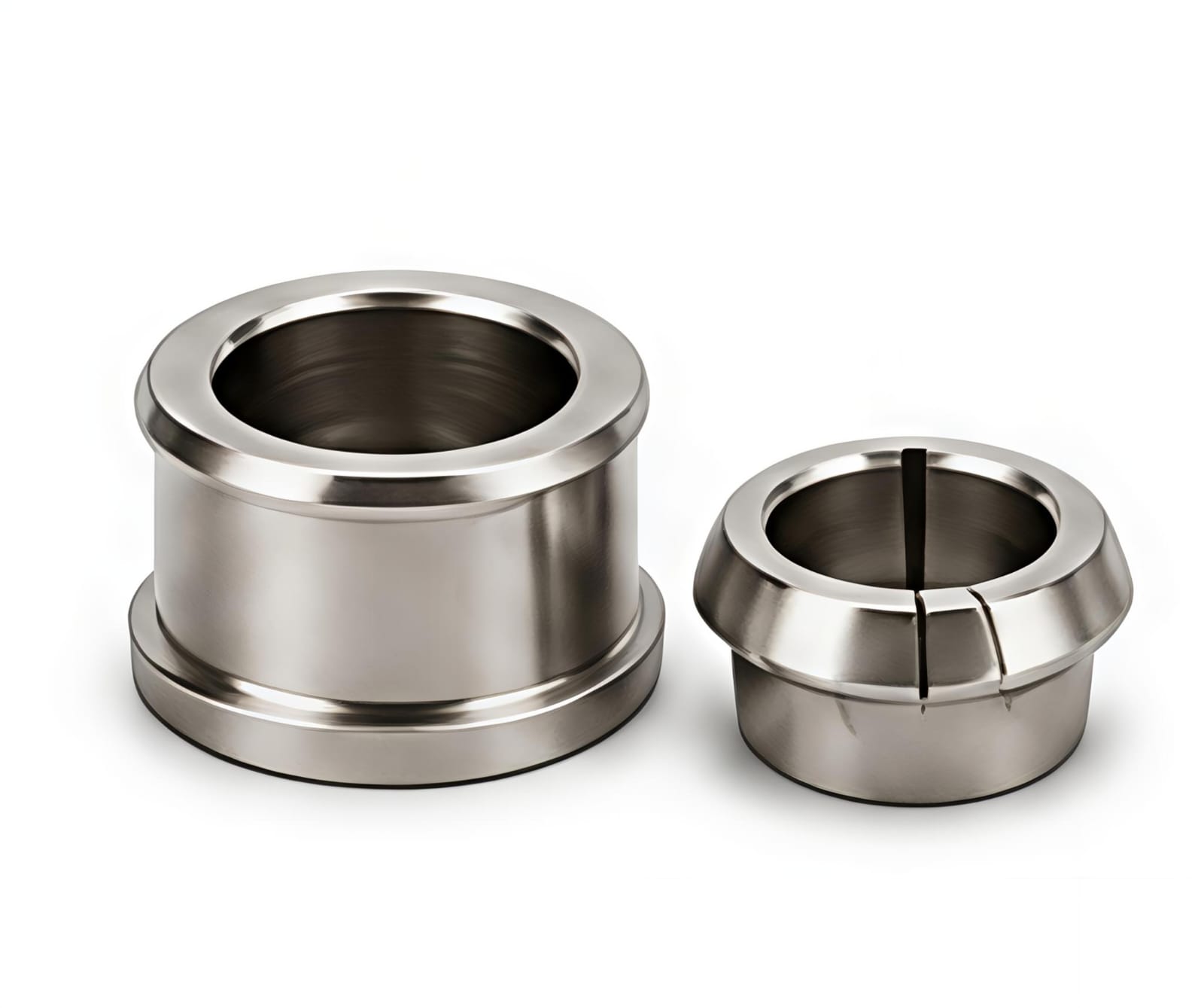

Spare Ferrules are part of Tube Fittings assembly & are required as spare in case of Loss or damage. They comprise of two precision engineered components as Front Ferrule & Back Ferrule. They are used for achieving High Pressure Leakproof Joint of Ferrule type Fittings
ITEM DESCRIPTION:
Spare Ferrules are part of Tube Fittings assembly & are required as spare in case of Loss or damage. They comprise of two precision engineered components as Front Ferrule & Back Ferrule. They are used for achieving High Pressure Leakproof Joint of Ferrule type Fittings
High Pressure Leakproof Joints are possible without using Welding, using only wrench or spanners.Suitable for High Pressure Gases, Liquids & Vacuum
Double Ferrule design for stringent applications as Impulse, Vibration, High pressure gases, Vacuum etc
They are used for achieving High Pressure Leakproof Joint of Ferrule type Fittings

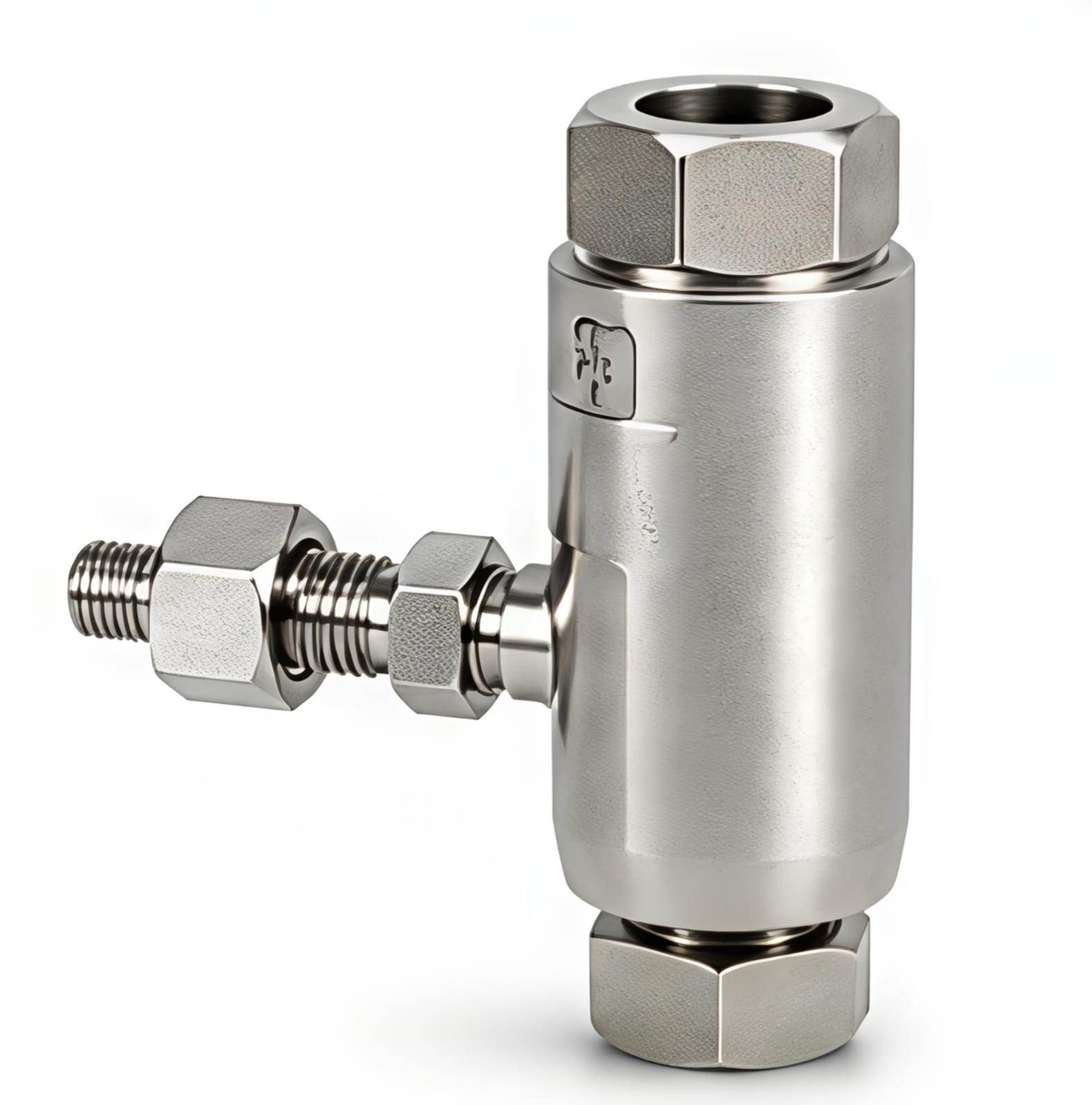

RAW matNfab Condensate Pot is a welded pressure vessel mainly used for steam applications. It is mainly used to protect sensitive metering systems/ devices by trapping & holding condensate & foreign material that may accumulate in Steam/ Gaseous Service Lines. It also works as a liquid barrier between the main line & secondary instruments to prevent steam, vapors & corrosive fluids from reaching them

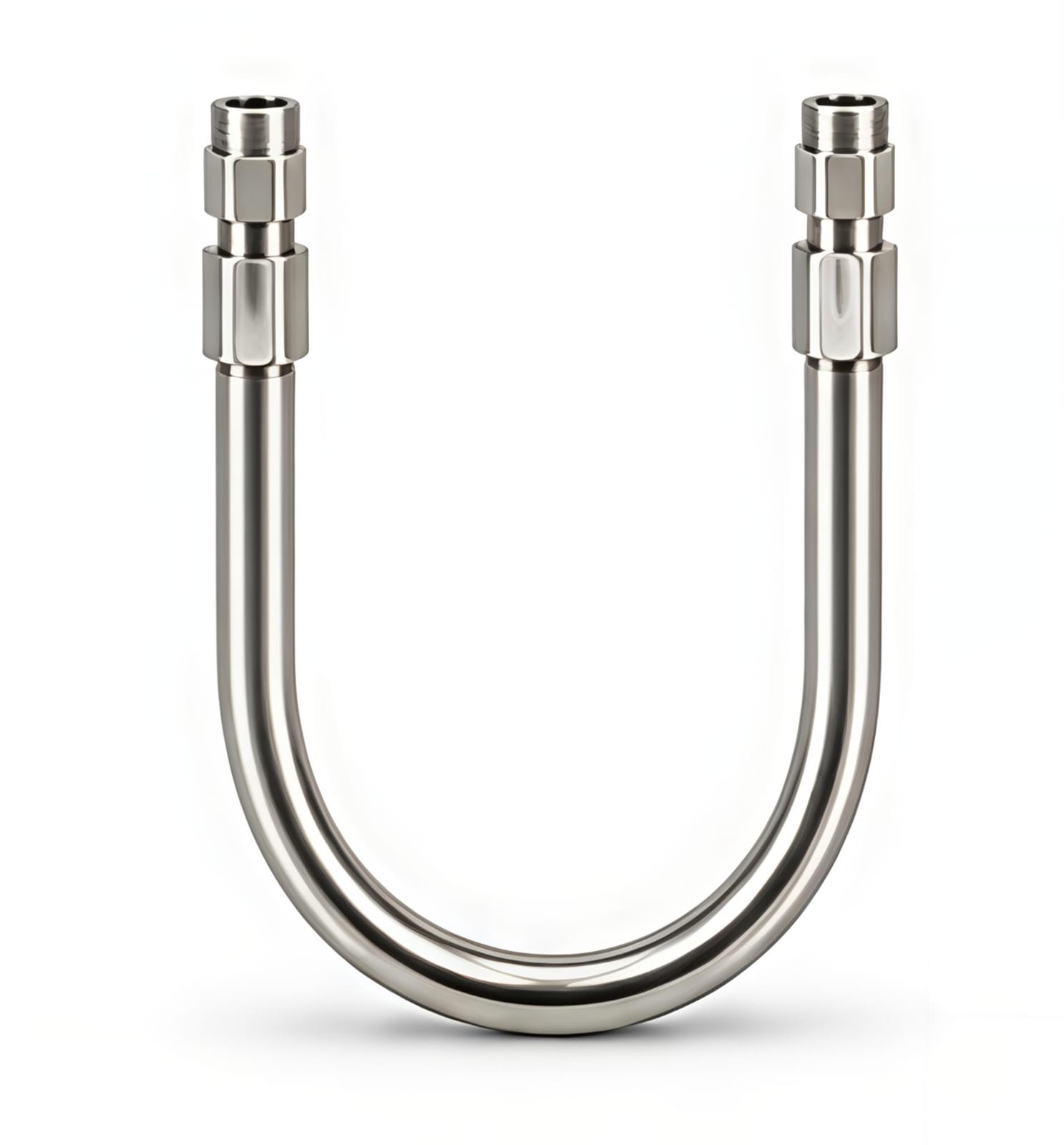

RAW matNfab Instrument Syphon is a Pipe Coil mainly used for steam applications. It is mainly used to protect Pressure Gauge/ Instrument from directly coming in contact with High temperature steam, while measuring pressure. The liquid filled in the Coil of the Syphon works as a media, which transmit the pressure to the gauge for measurement & protect the instrument getting damaged due to high temperature of the steam. It is available in U type & Coil/ Pigtail Type shapes. It is available in various grades as CS, AS & SS, optionally with 3.1 Certificate.

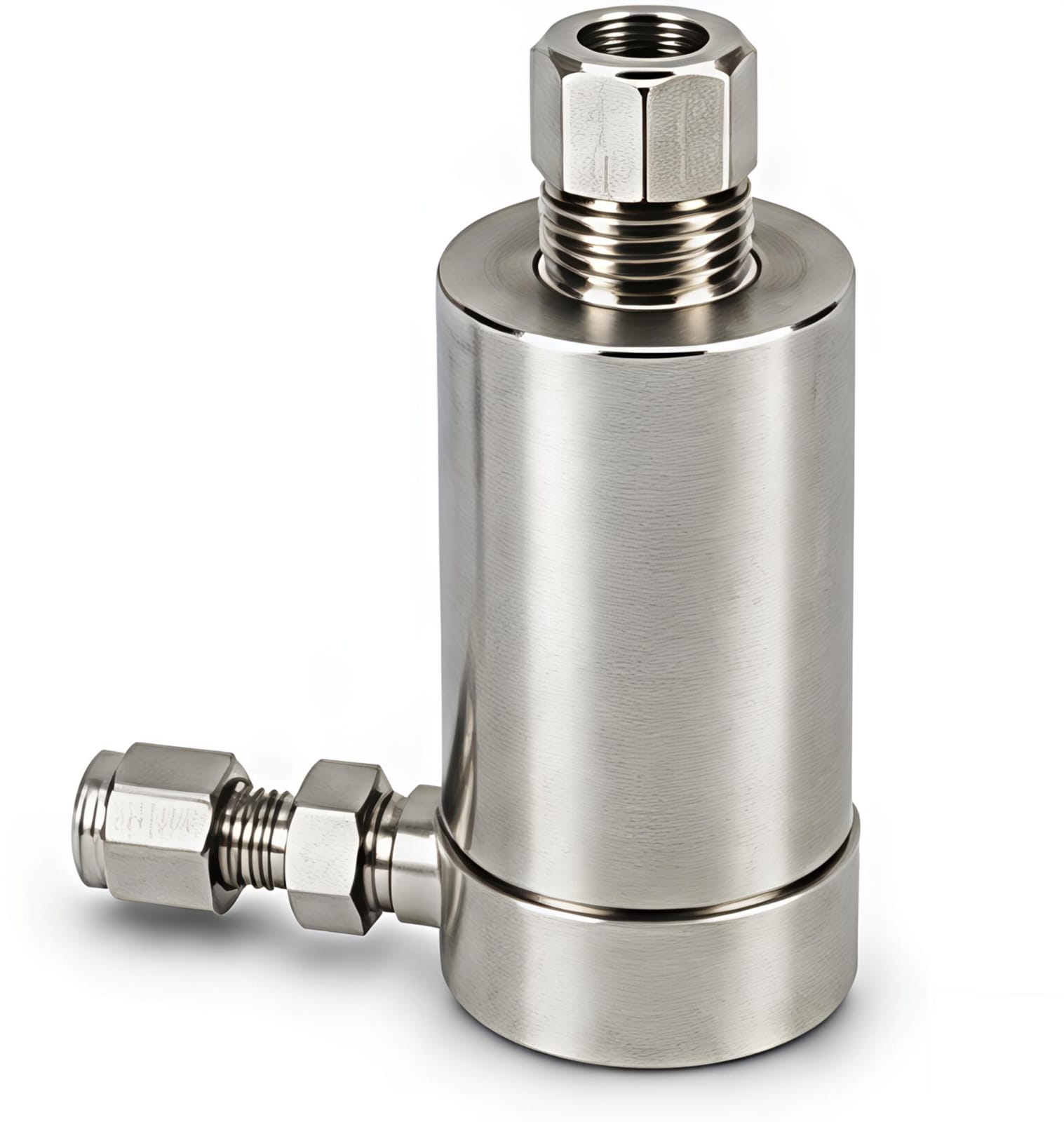

RAW matNfab Snubber is a device used to suppress (“snub”) excess force or rapid movement in mechanical systems. It does not alter the pressure of the process, but reduces the pulsation in the line, thereby improving the stability of the gauge reading, while extending the effective lifetime of the gauge. It is used for Pressure Gauge Safety. It is available in various Sizes & Raw Materials grades

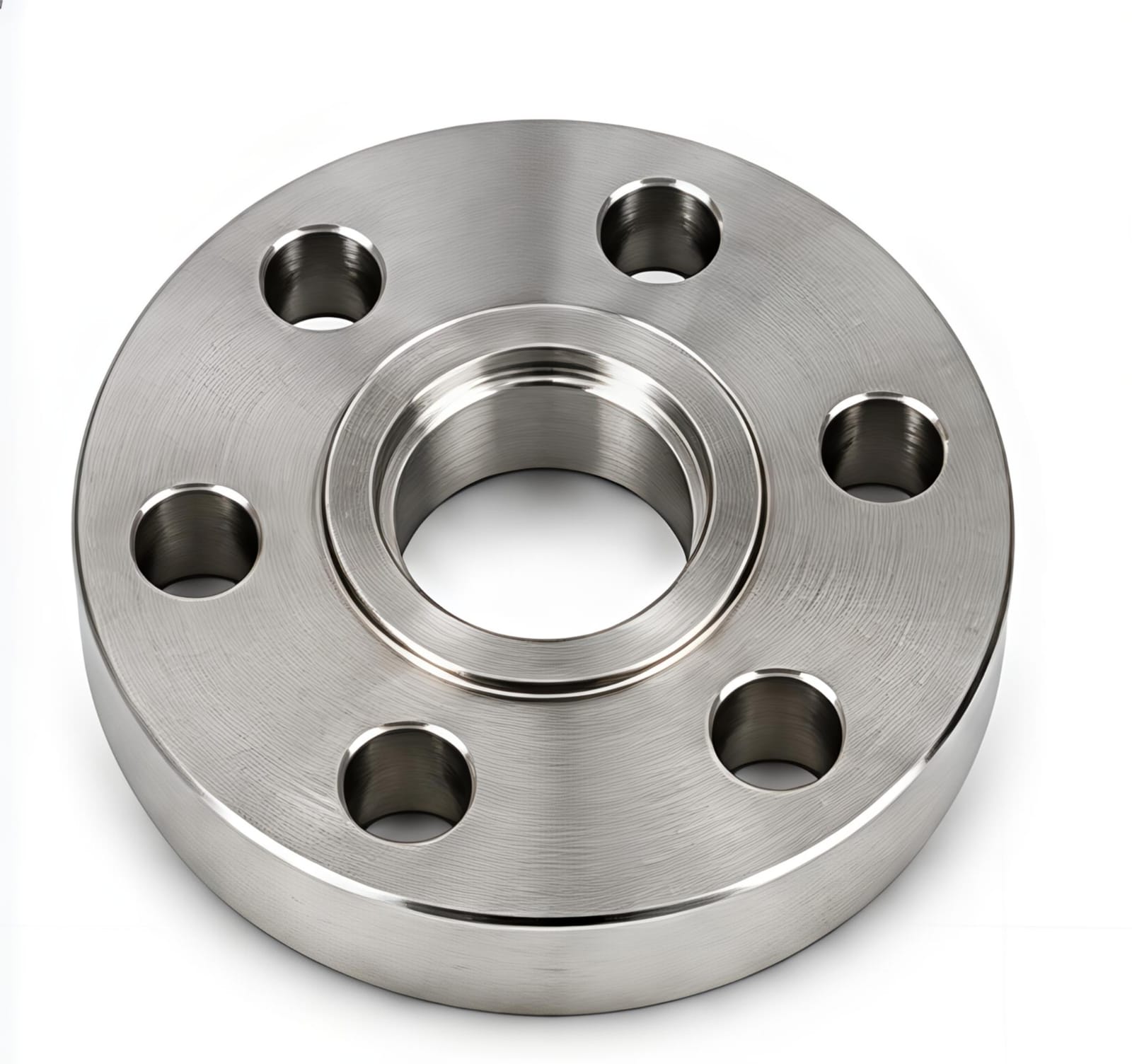

Flanges are primarily used where connecting or dismantling a Piping joint is needed. RAW matNfab also offer special flanges with reduced Tapping at Centre, mainly used to connect mail line with Instrument Line. It is available in material grades as CS, SS, AS, Monel, Hastelloy etc, also optionally with 3.1 Certificate

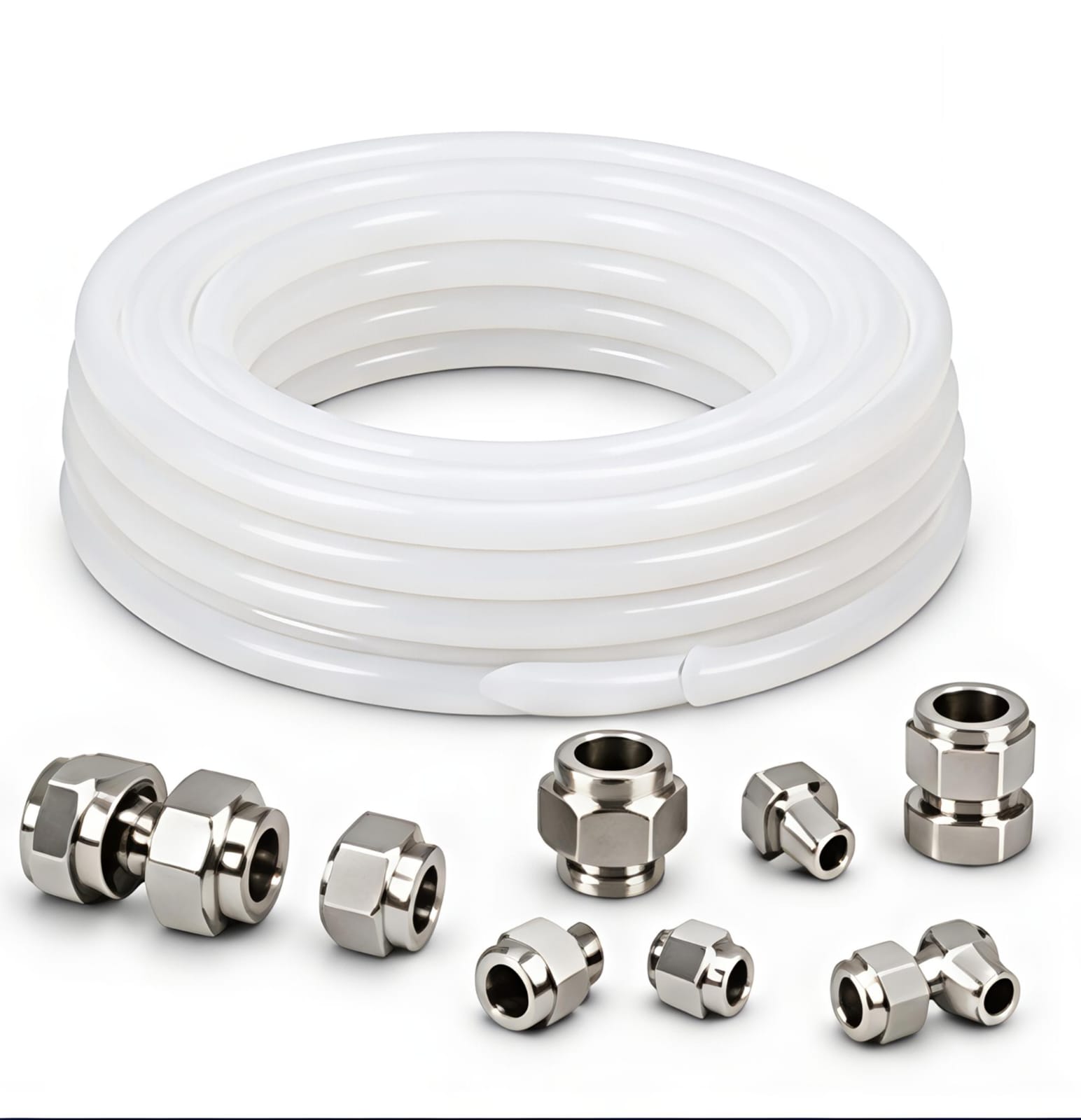

RAW matNfab PTFE Tubing, Fittings & Valves are manly used for Low Pressure (Up to 10 Bars Test Pressure), Highly corrosive media. Complete Range of PTFE Products as PTFE Tube, PTFE Compression Type Tube Fittings, PTFE Needle Valves, PTFE Ball Valves, PTFE Pipe Fittings, PTFE Manifolds are available.

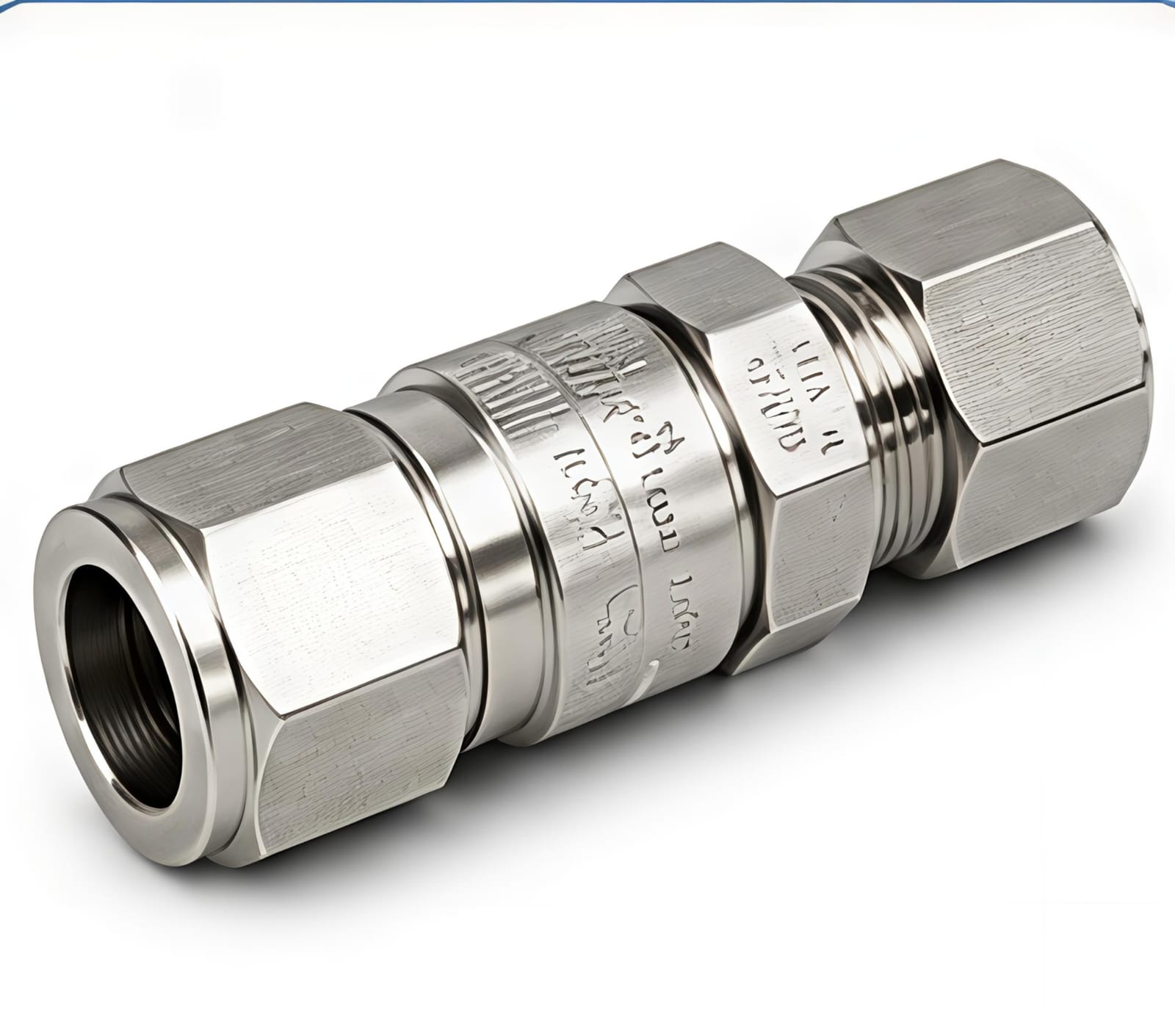

RAW matNfab Quick Release coupling is used for immediate, quick & easy connecting or disconnecting of two separate lines. When connected it passes flow of fluid or gaseous media, without any leakage even when under pressure & when disconnected it has function to block pressured media from flowing in open, without spillage or Leakage. It is an assembly of precision designed components as Body, adaptors, Ball, Spindle, Spring, soft seal etc.

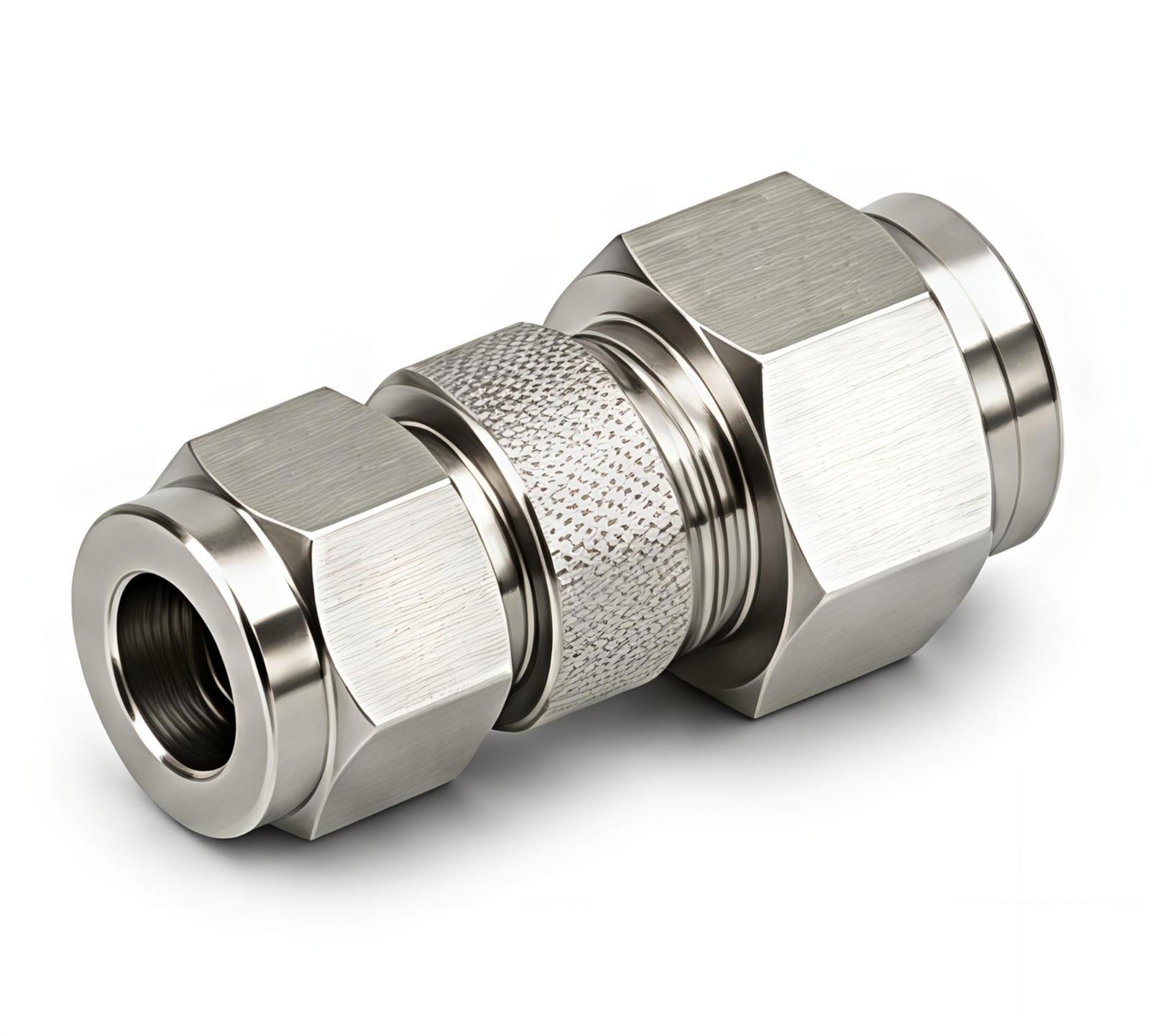

RAW matNfab Swivel Adaptor is used for connecting any one equipment/ Port with another Equipment/Port, with flexibility to fix Rotary Direction of the Equipment at any position of convenience, using Swivel Positioning arrangement & achieve a High pressure leak proof Joint. It is an assembly of precision designed components as Body, Swivel Nut & soft seal.
Flexibility to adjust Rotary position of any equipment such as pressure gauges.
Suitable for High-Pressure Gases & Liquids

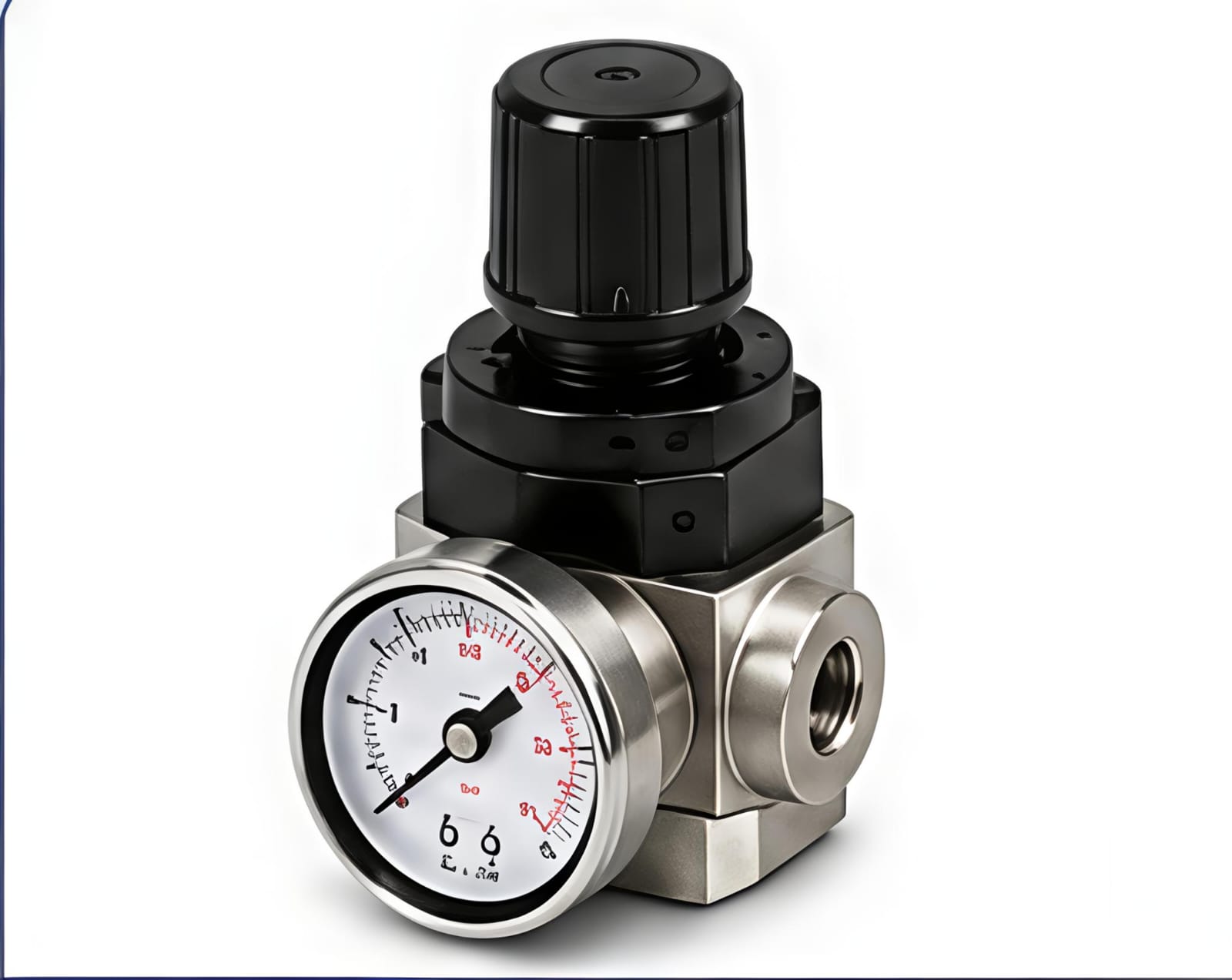

RAW matNfab Pressure Regulators are used to maintain constant output pressure in compressed-air systems regardless of variations in input pressure or output flow. It is used for regulating pressure from High to low range. As RAW matNfab Pressure regulators are designed for High pressure applications, it is manufactured from Solid Bar stock Metal Body.

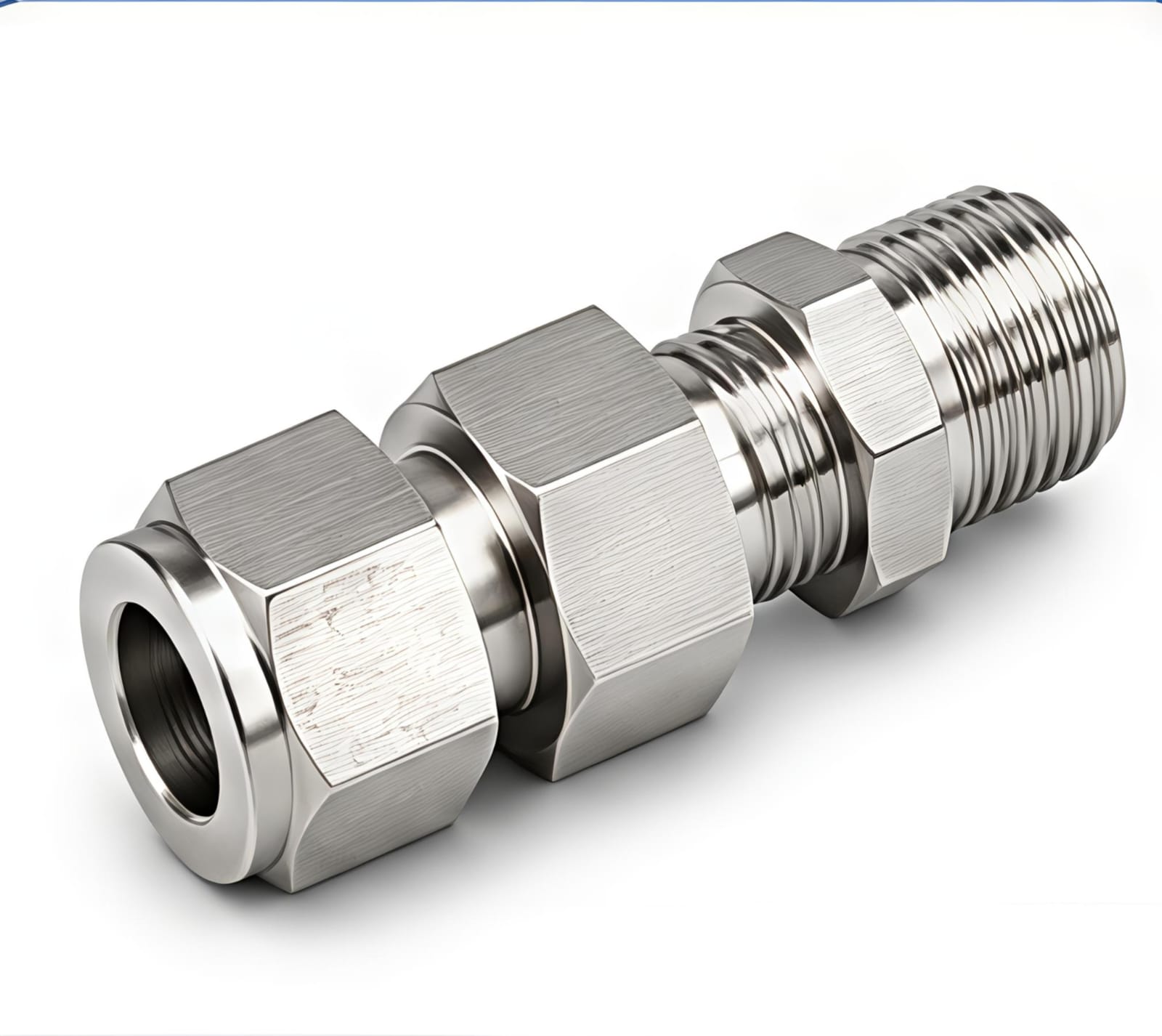

Male Connector is a Straight Connector with Male Pipe Threads on one end & Ferrule type joint on other end. It comprises of four precision engineered components as Body, Front Ferrule, Back Ferrule & Nut. It is used for achieving High Pressure Leakproof Straight Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at one End to connect Second End with Female Threaded Open Port.

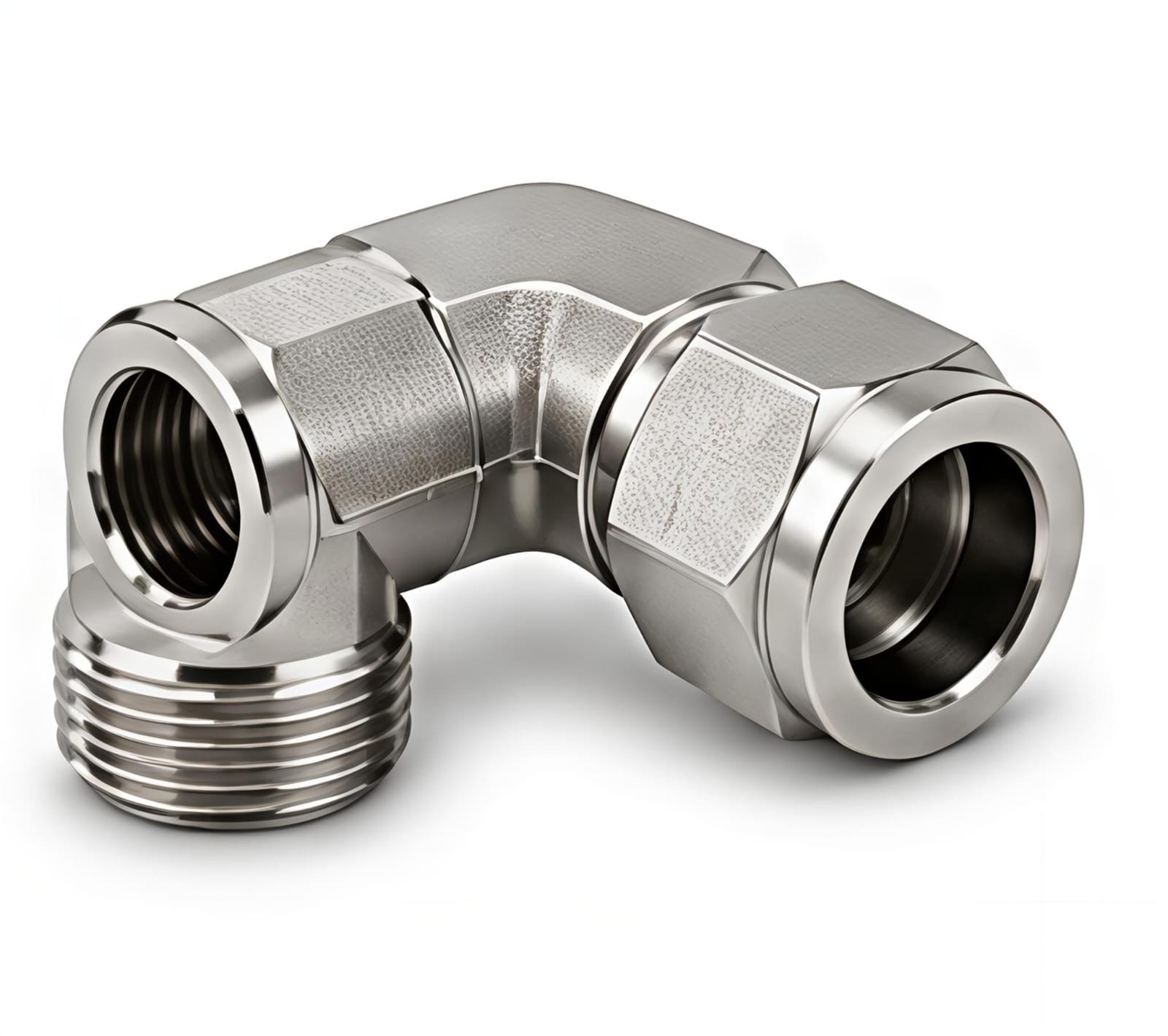

Male Elbow 90 Deg. is a 90 Degree Elbow Connector with Male Pipe Threads on one end & Ferrule type joint on other end. It comprises of four precision engineered components as Body, Front Ferrule, Back Ferrule & Nut. It is used for achieving High Pressure Leakproof 90 degree angular Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at one End to connect Second End with Female Threaded Open Port.

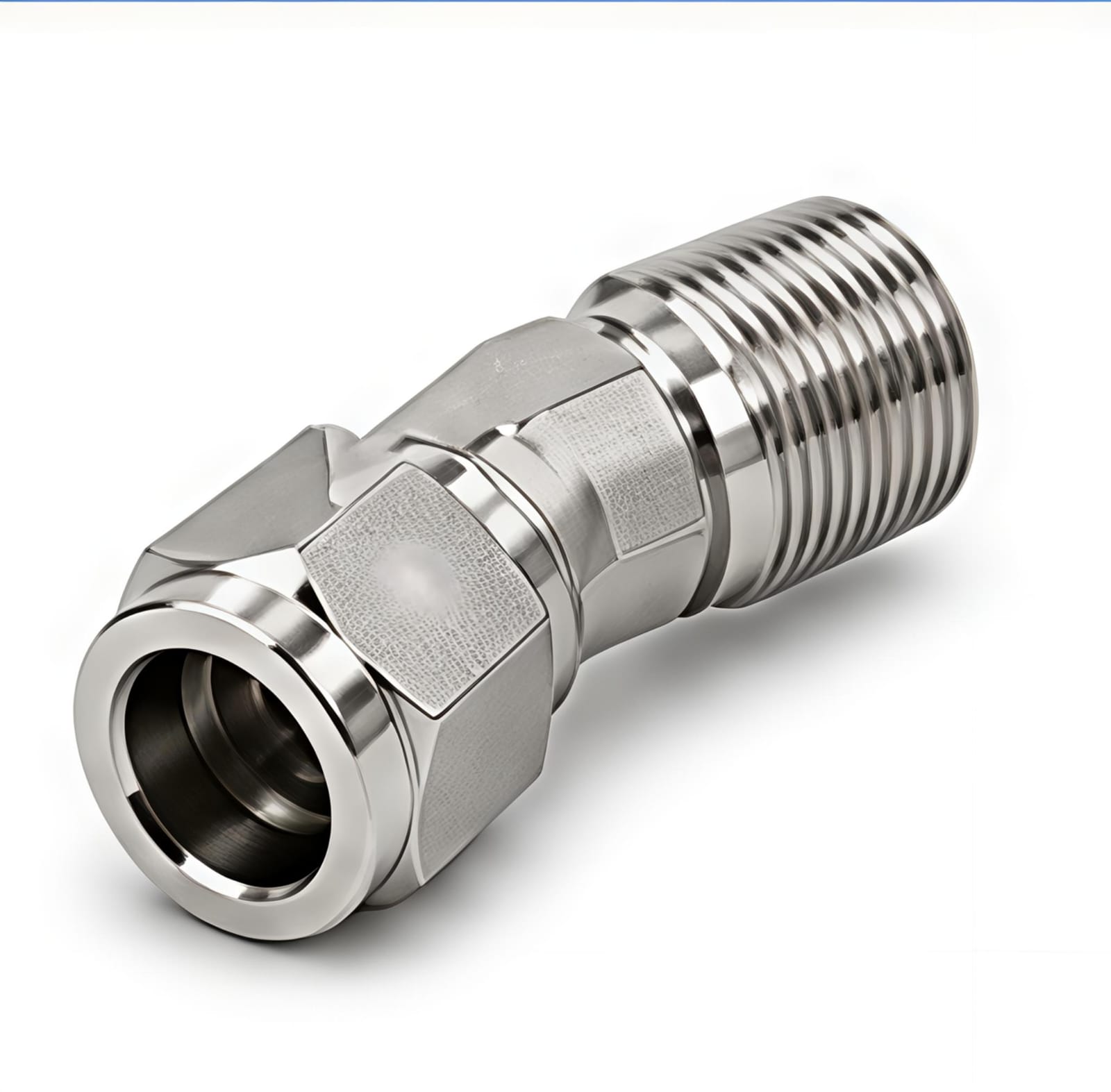

Male Elbow 45 Deg. is a 45 Degree Elbow Connector with Male Pipe Threads on one end & Ferrule type joint on other end. It comprises of four precision engineered components as Body, Front Ferrule, Back Ferrule & Nut. It is used for achieving High Pressure Leakproof 45 degree angular Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at one End to connect Second End with Female Threaded Open Port

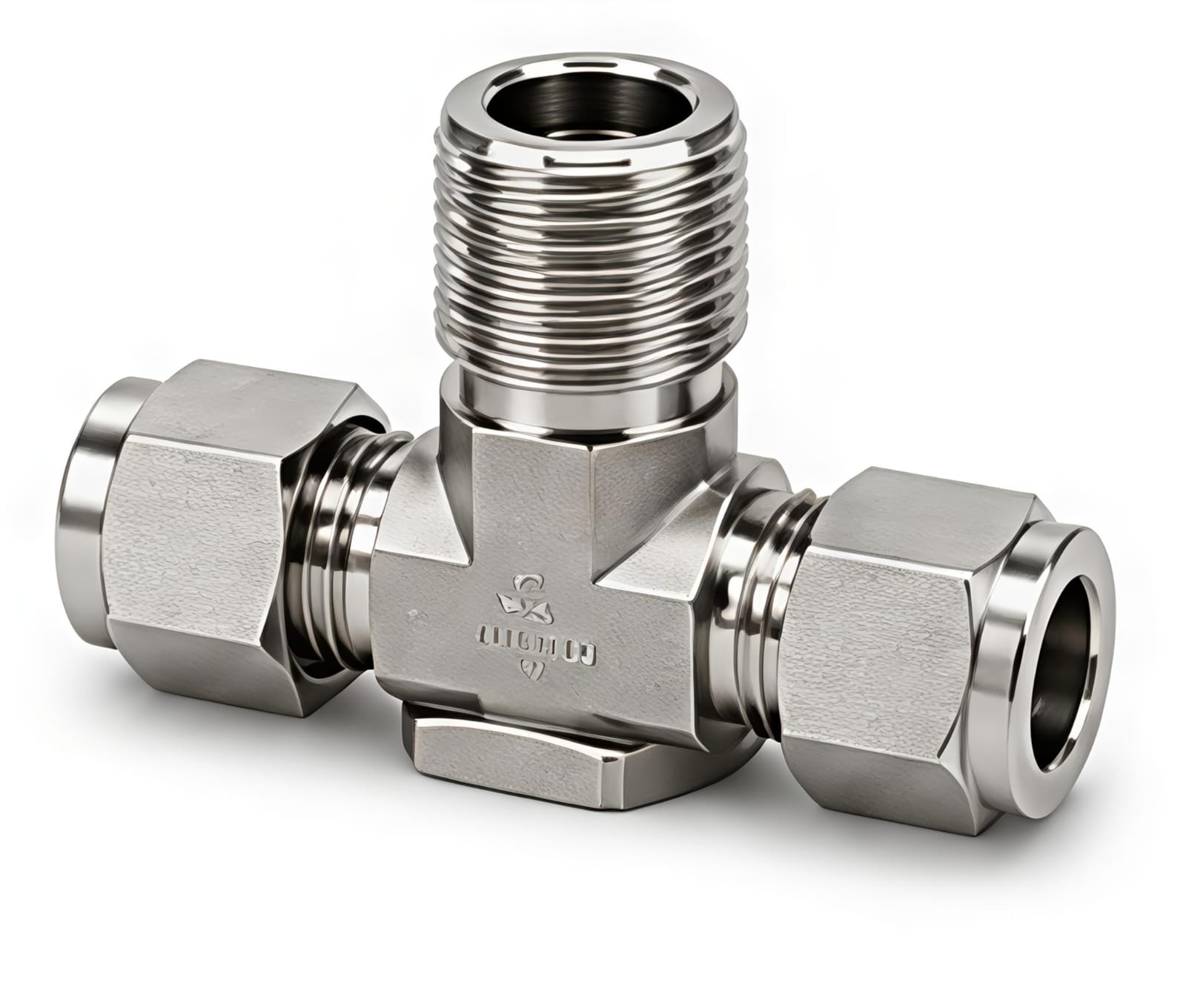

Male Run Tee is a Tee Connector with Male Pipe Threads on Run Side of Tee Joint & Ferrule type joint on other two ends. It comprises of seven precision engineered components as Body, 2 Nos. Front Ferrules, 2 Nos. Back Ferrules & 2 Nos. Nuts. It is used for achieving High Pressure Leakproof Tee Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at two angular Ends to connect Third End with Female Threaded Open Port
Male Bulkhead Connector is a Straight Connector with Male Pipe Threads on one end & Ferrule type joint on other end, with provision of Panel Mounting arrangement for the connector. It comprises of five precision engineered components as Body, Front Ferrule, Back Ferrule, Nut & Lock Nut. It is used for achieving High Pressure Leakproof Straight Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at one End to connect Second End with Female Threaded Open Port, with panel mounting arrangement

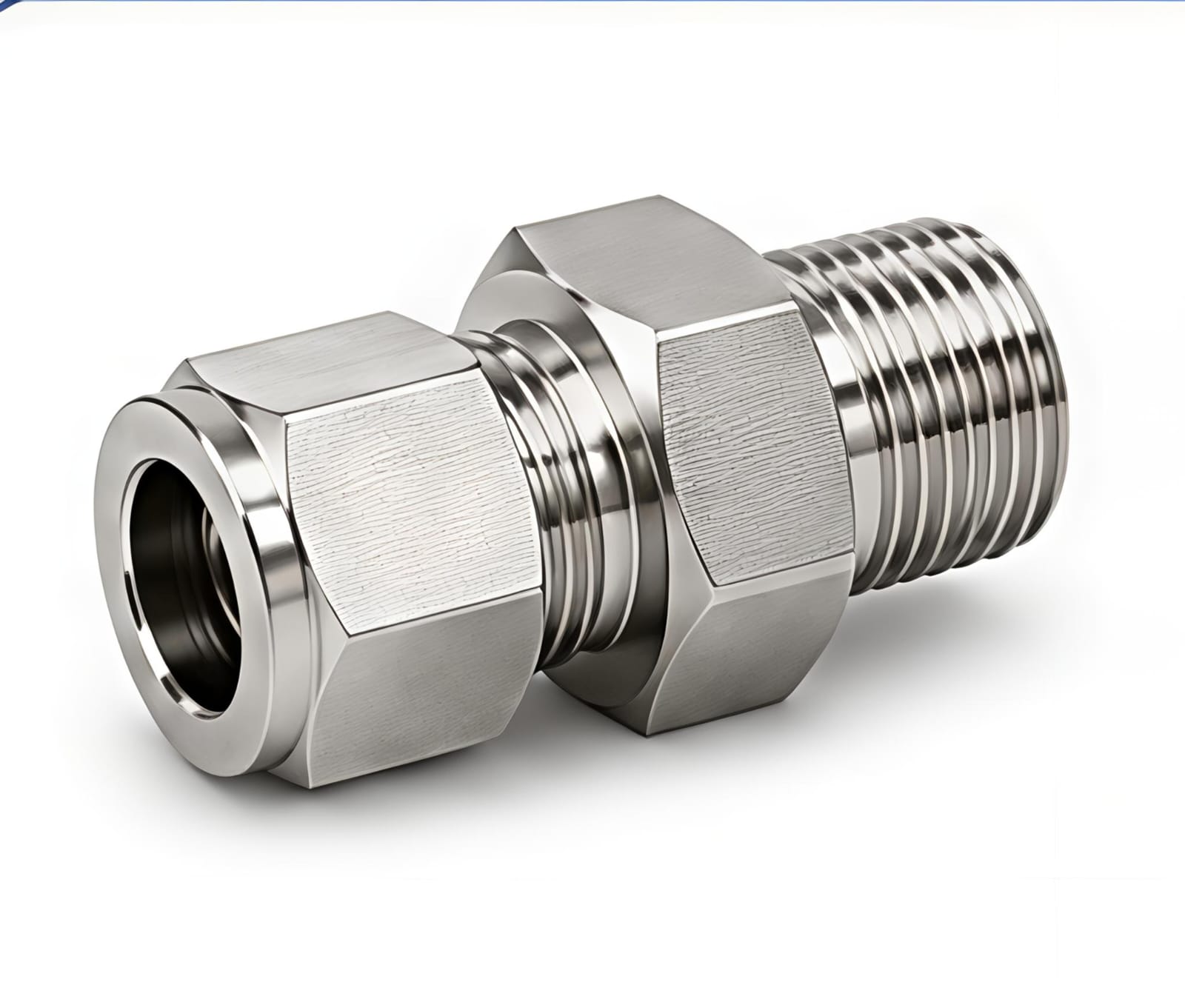

Male Tube Adaptor is a Straight Adaptor with Male Pipe Threads on one end & Plain Tube End for swaging Ferrule Fitting on other end. Mainly used for converting existing Ferrule type Tube Fitting end to Male Pipe Threaded end. It is a one piece precision engineered component. It is used for achieving High Pressure Leakproof Straight Joint by swaging of Ferrules on Plain Tube End OD provided on one End of Adaptor to connect Second End with Female Threaded Open Port.

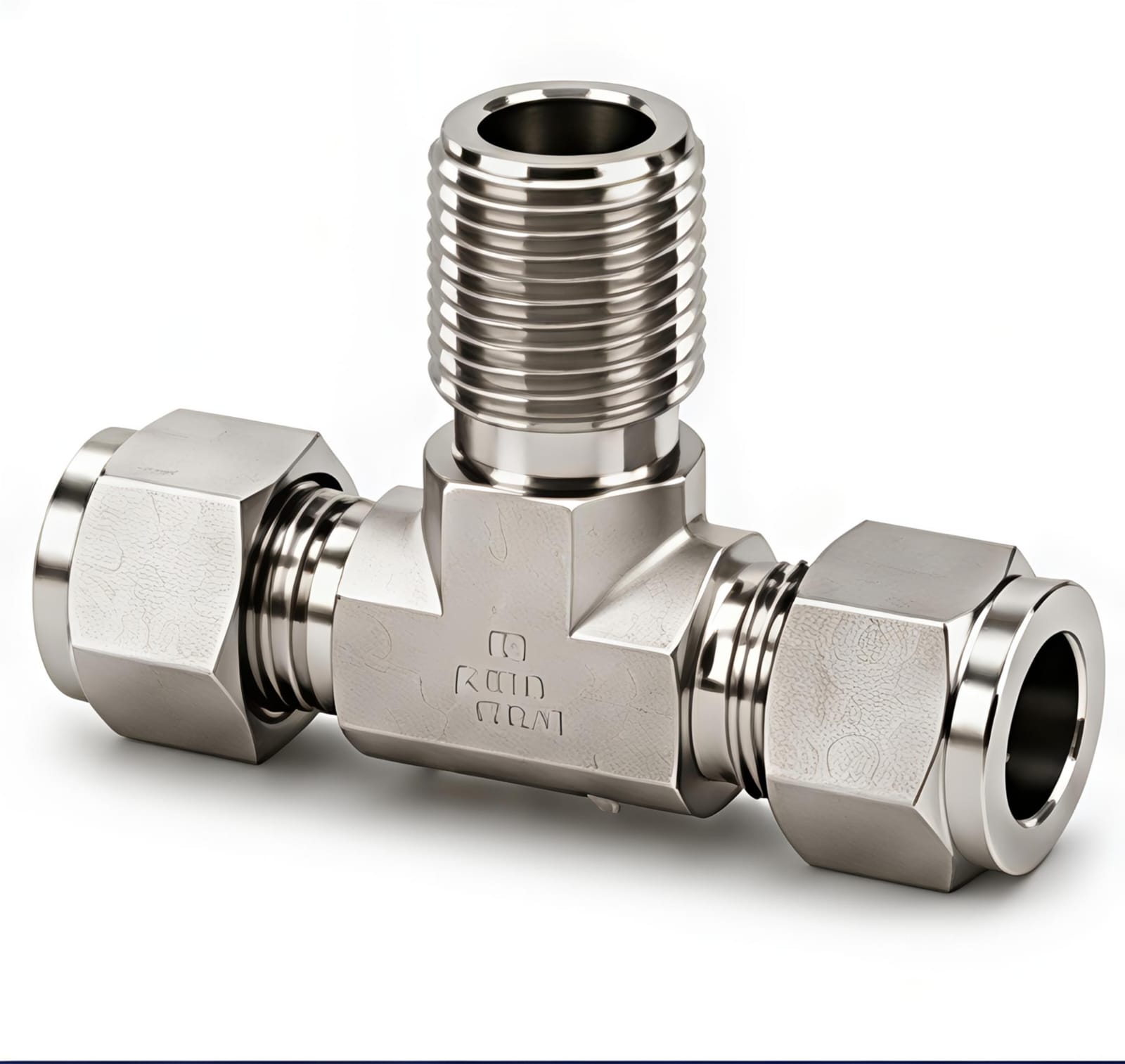

Male Branch Tee is a Tee Connector with Male Pipe Threads on Branch Side of Tee Joint & Ferrule type joint on other two ends. It comprises of seven precision engineered components as Body, 2 Nos. Front Ferrules, 2 Nos. Back Ferrules & 2 Nos. Nuts. It is used for achieving High Pressure Leakproof Tee Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at two parallel Ends to connect Third End with Female Threaded Open Port.

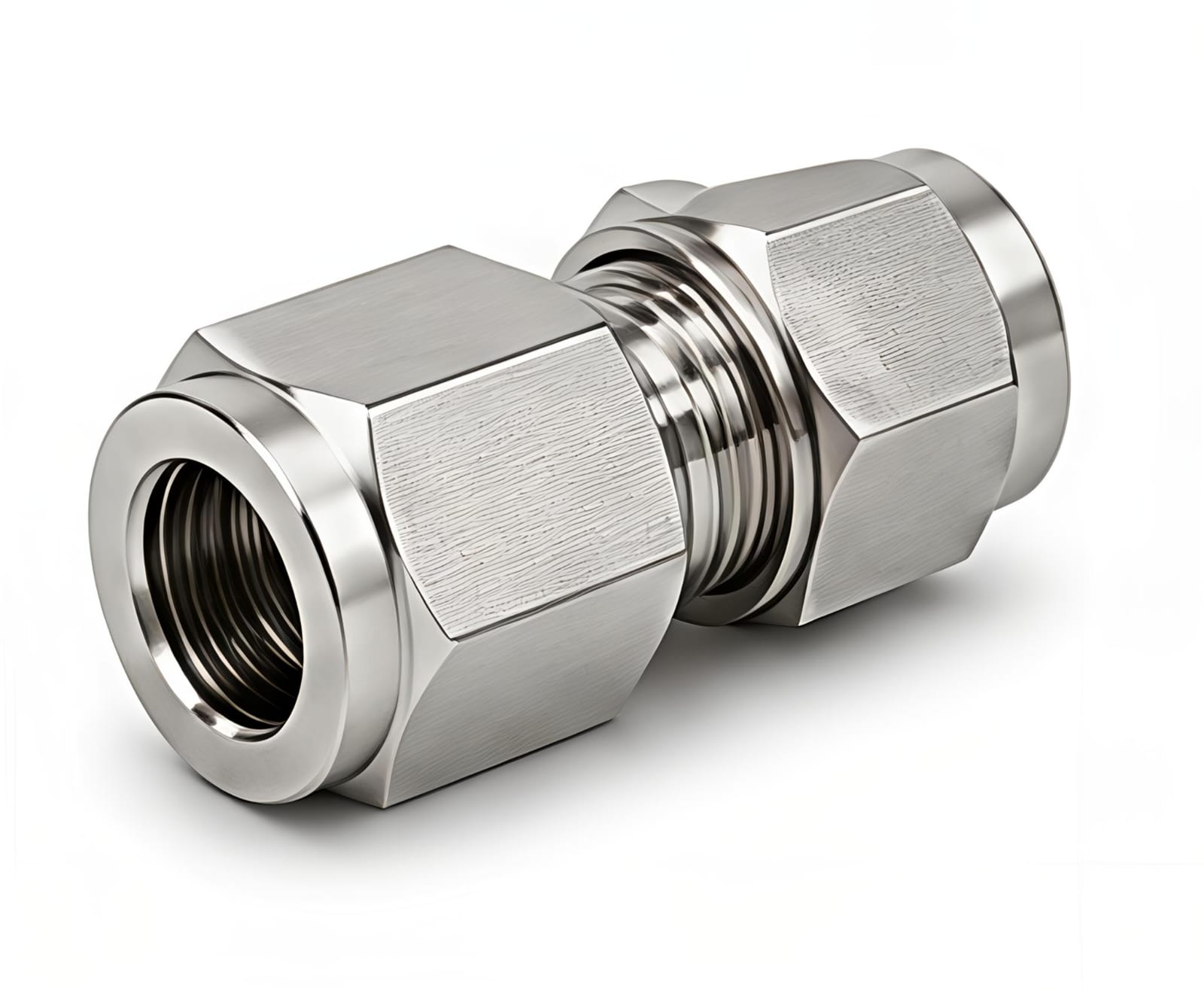

Female Connector is a Straight Connector with Female Pipe Threads on one end & Ferrule type joint on other end. It comprises of four precision engineered components as Body, Front Ferrule, Back Ferrule & Nut. It is used for achieving High Pressure Leakproof Straight Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at one End to connect Second End with Male Threaded Open Port.

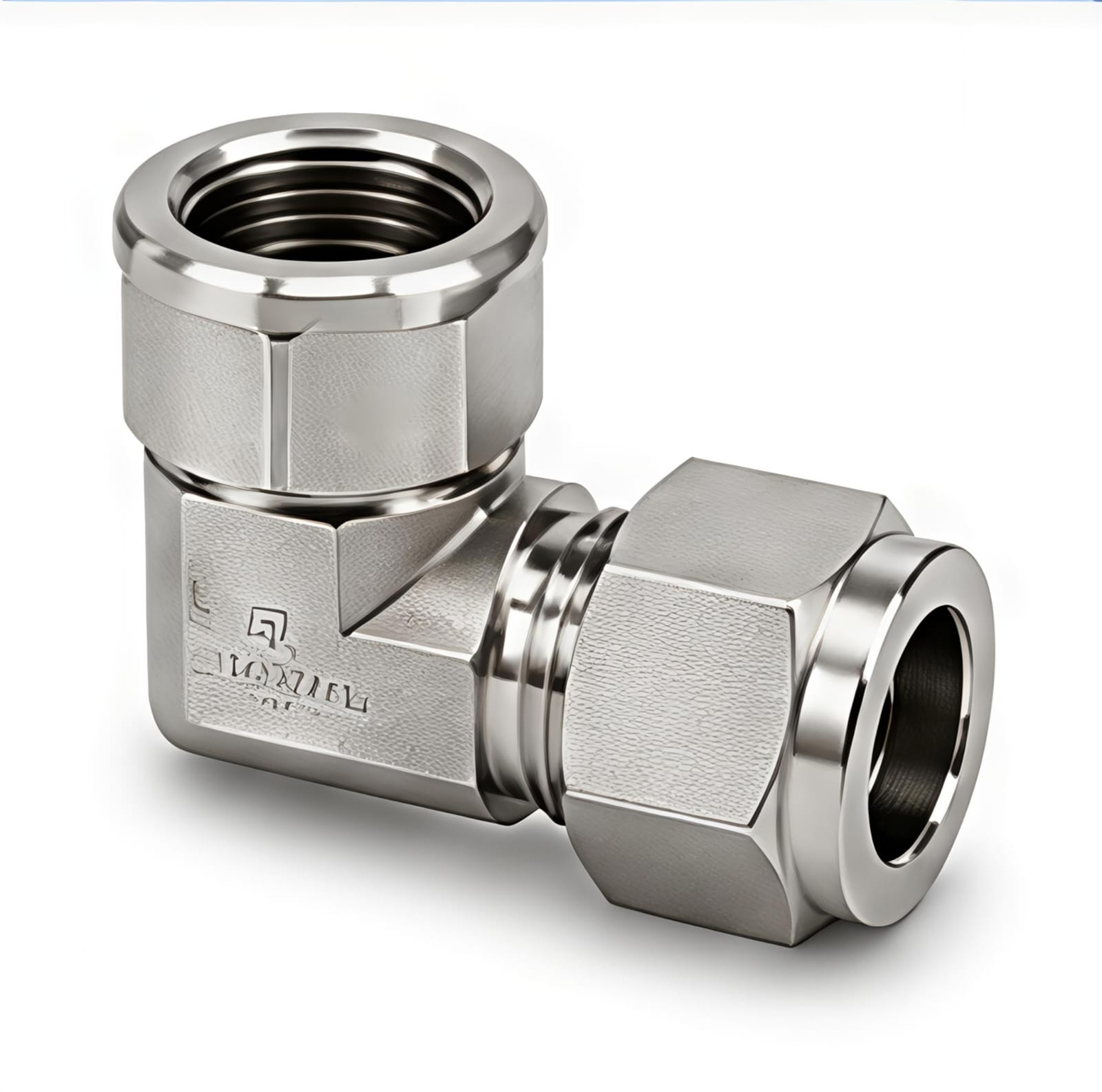

Female Elbow 90 Deg. is a 90 Degree Elbow Connector with Female Pipe Threads on one end & Ferrule type joint on other end. It comprises of four precision engineered components as Body, Front Ferrule, Back Ferrule & Nut. It is used for achieving High Pressure Leakproof 90 degree angular Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at one End to connect Second End with Male Threaded Open Port.
Female Run Tee is a Tee Connector with Female Pipe Threads on Run Side of Tee Joint & Ferrule type joint on other two ends. It comprises of seven precision engineered components as Body, 2 Nos. Front Ferrules, 2 Nos. Back Ferrules & 2 Nos. Nuts. It is used for achieving High Pressure Leakproof Tee Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at two angular Ends to connect Third End with Male Threaded Open Port.
Female Branch Tee is a Tee Connector with Female Pipe Threads on Branch Side of Tee Joint & Ferrule type joint on other two ends. It comprises of seven precision engineered components as Body, 2 Nos. Front Ferrules, 2 Nos. Back Ferrules & 2 Nos. Nuts. It is used for achieving High Pressure Leakproof Tee Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at two parallel Ends to connect Third End with Male Threaded Open Port.

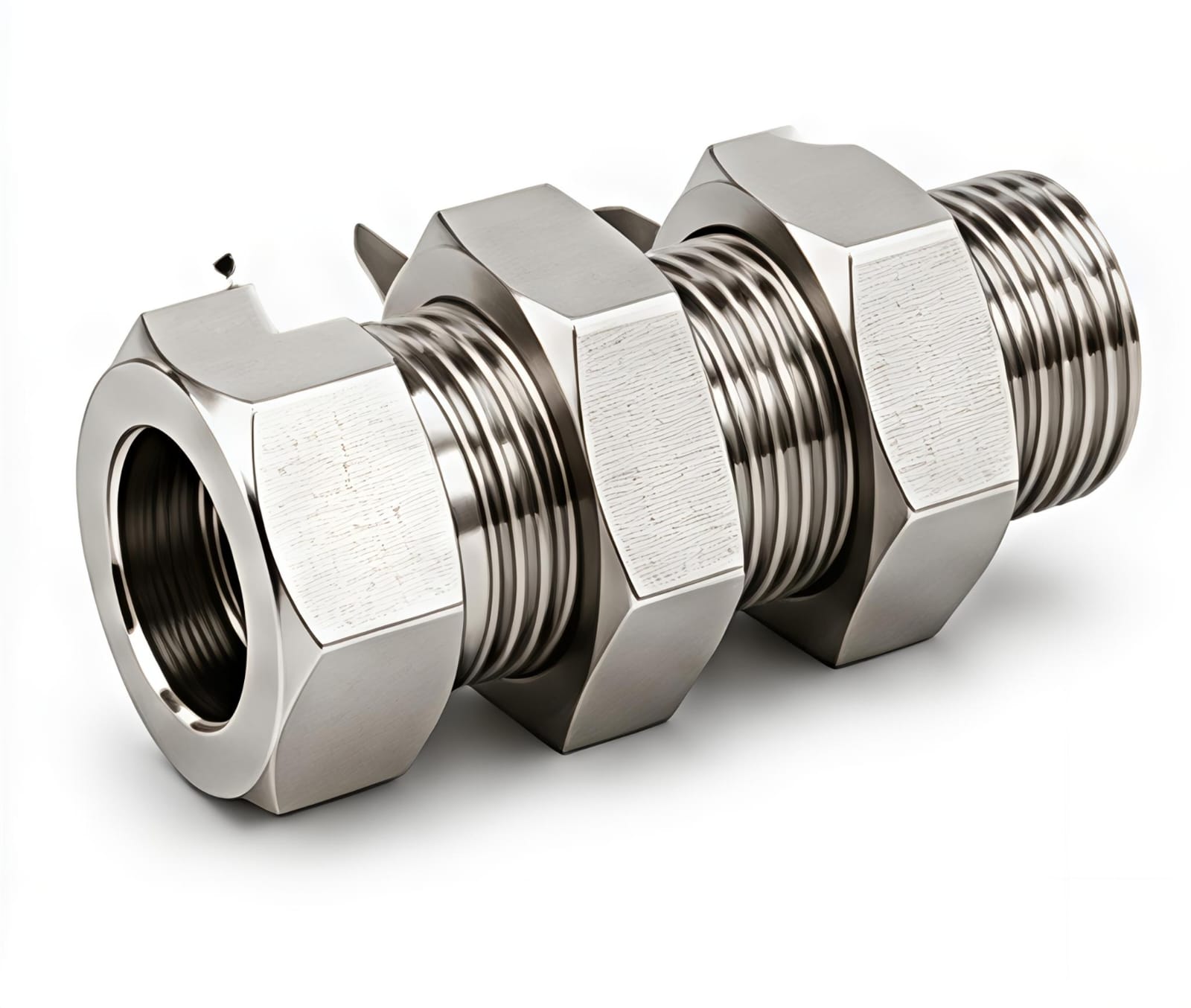

Female Bulkhead Connector is a Straight Connector with Female Pipe Threads on one end & Ferrule type joint on other end, with provision of Panel Mounting arrangement for the connector. It comprises of five precision engineered components as Body, Front Ferrule, Back Ferrule, Nut & Lock Nut. It is used for achieving High Pressure Leakproof Straight Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at one End to connect Second End with Male Threaded Open Port, with panel mounting arrangement.

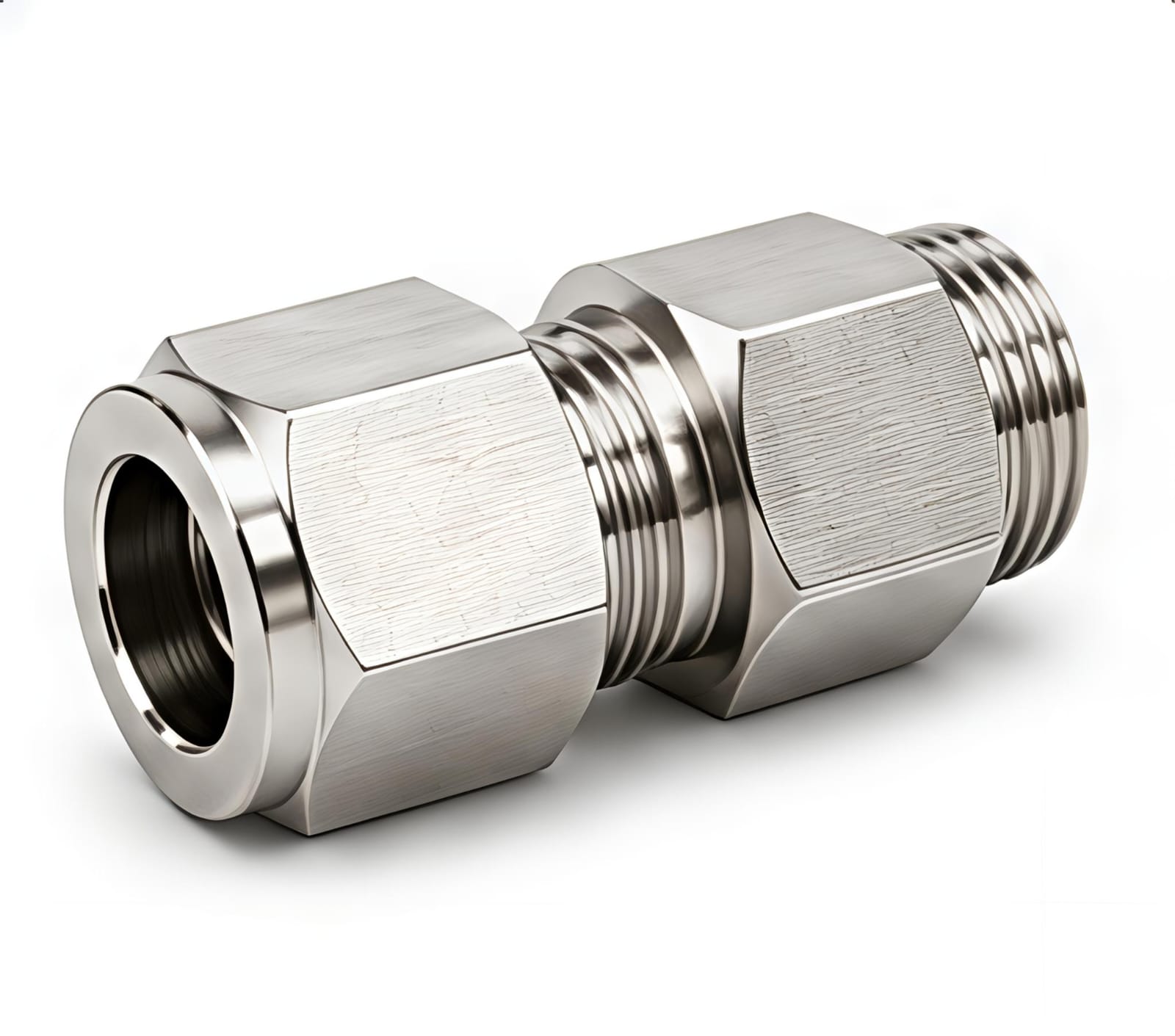

Female Tube Adaptor is a Straight Adaptor with Female Pipe Threads on one end & Plain Tube End for swaging Ferrule Fitting on other end. Mainly used for converting existing Ferrule type Tube Fitting end to Female Pipe Threaded end. It is a one piece precision engineered component. It is used for achieving High Pressure Leakproof Straight Joint by swaging of Ferrules on Plain Tube End OD provided on one End of Adaptor to connect Second End with Male Threaded Open Port.

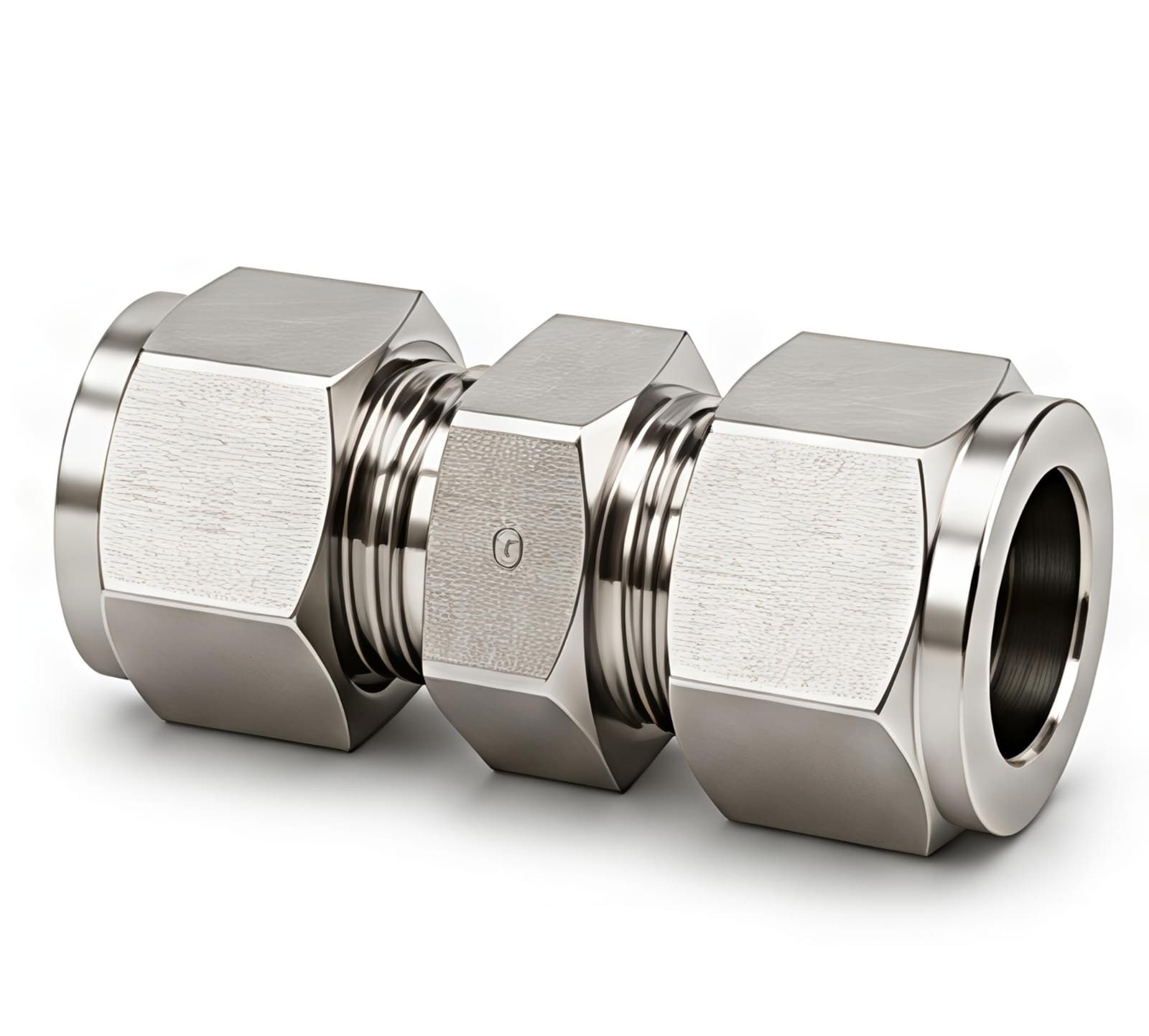

Tube Union is a Straight Connector with both ends having Ferrule type joint. It comprises of seven precision engineered components as Body, 2 Nos Front Ferrules, 2 Nos Back Ferrules & 2 Nos Nuts. It is used for achieving High Pressure Leakproof Straight Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at both ends, to connect two separate tube pieces.

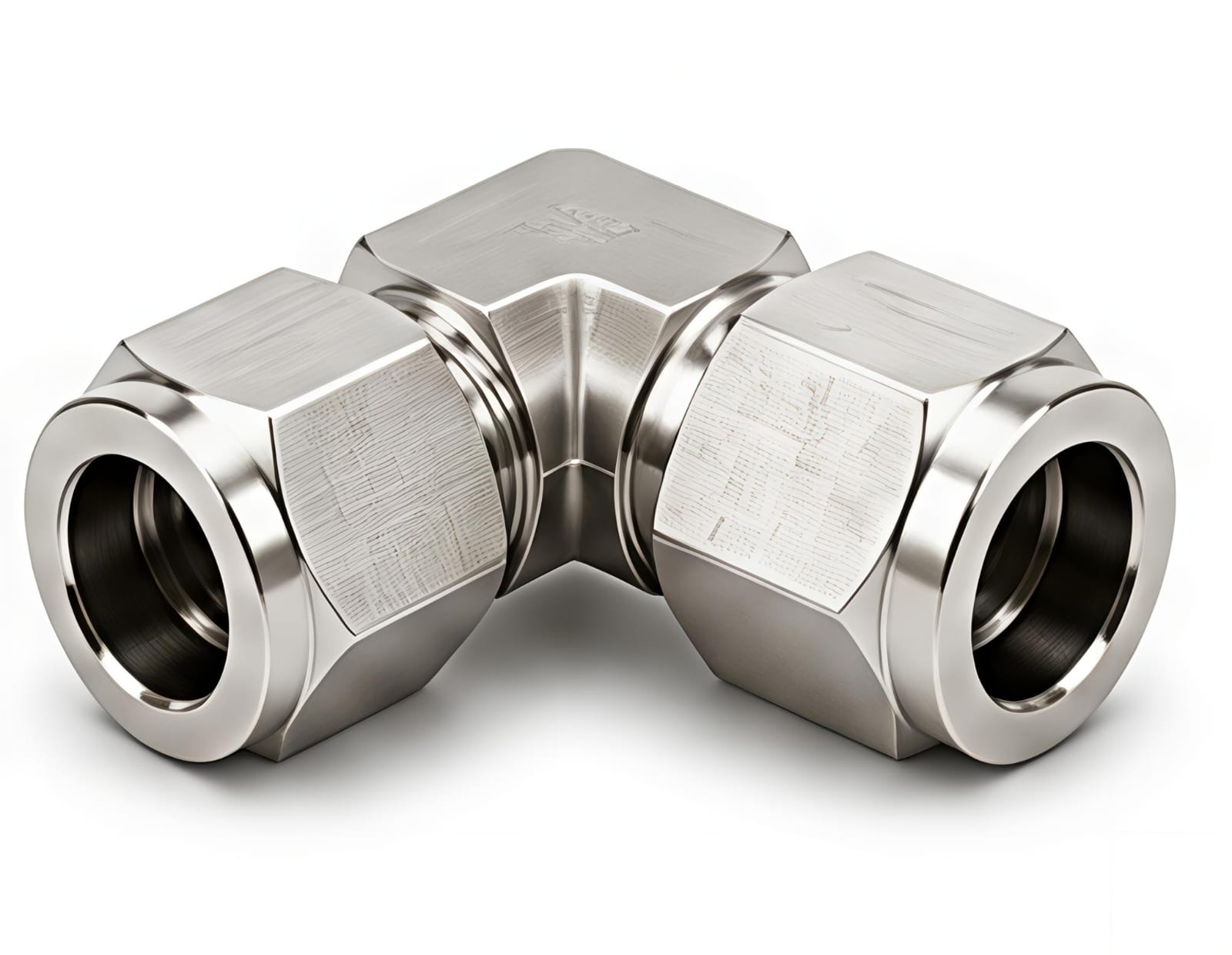

Elbow Union Tube is a 90 Deg. Elbow Connector with both ends having Ferrule type joint. It comprises of seven precision engineered components as Body, 2 Nos Front Ferrules, 2 Nos Back Ferrules & 2 Nos Nuts. . It is used for achieving High Pressure Leakproof 90 degree angular Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at both ends, to connect two separate tube pieces.

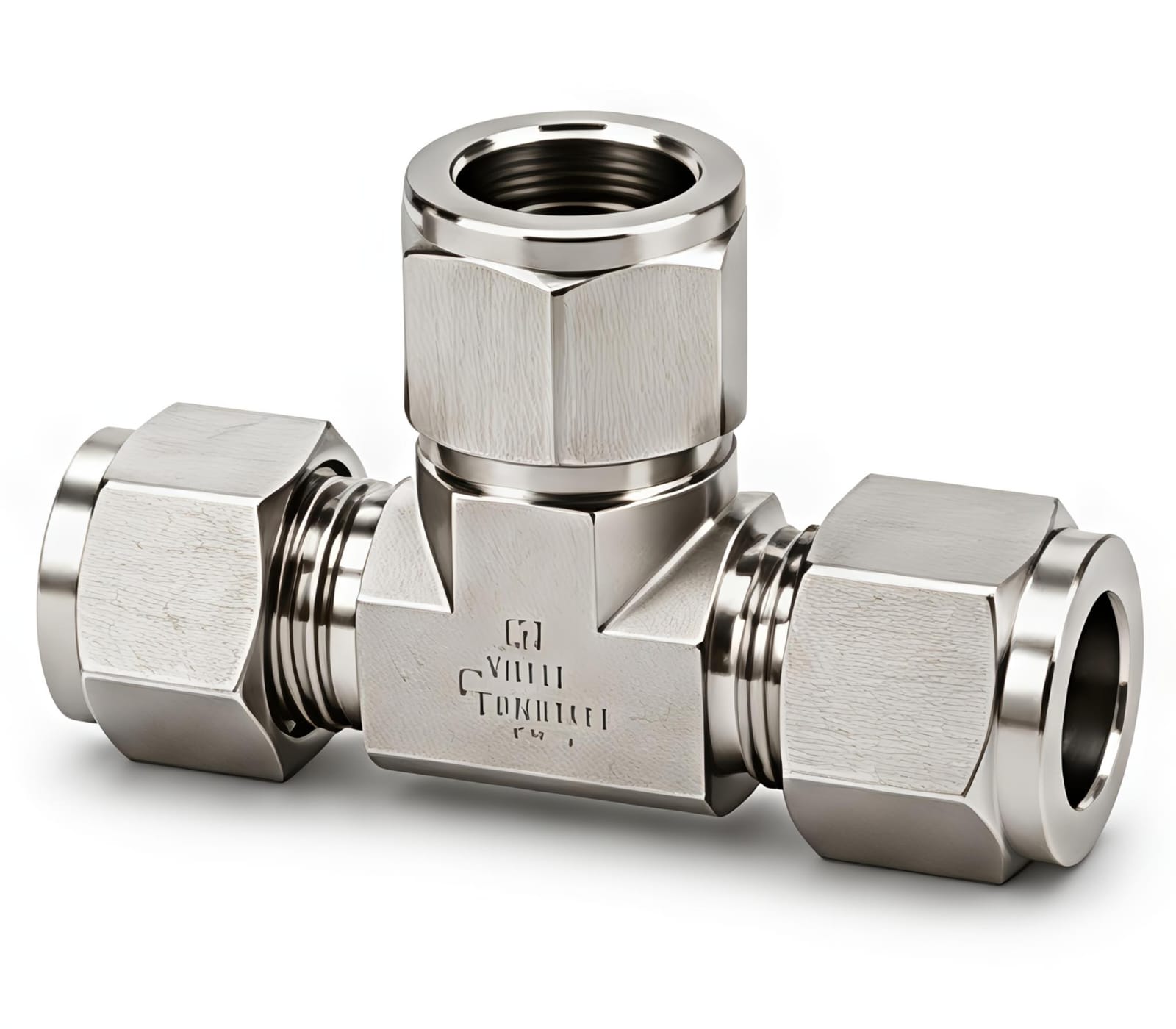

Tee Tube Union is a Tee Connector with all three ends having Ferrule type joint. It comprises of ten precision engineered components as Body, 3 Nos Front Ferrules, 3 Nos Back Ferrules & 3 Nos Nuts. It is used for achieving High Pressure Leakproof Tee Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at all three ends, to connect three separate tube pieces

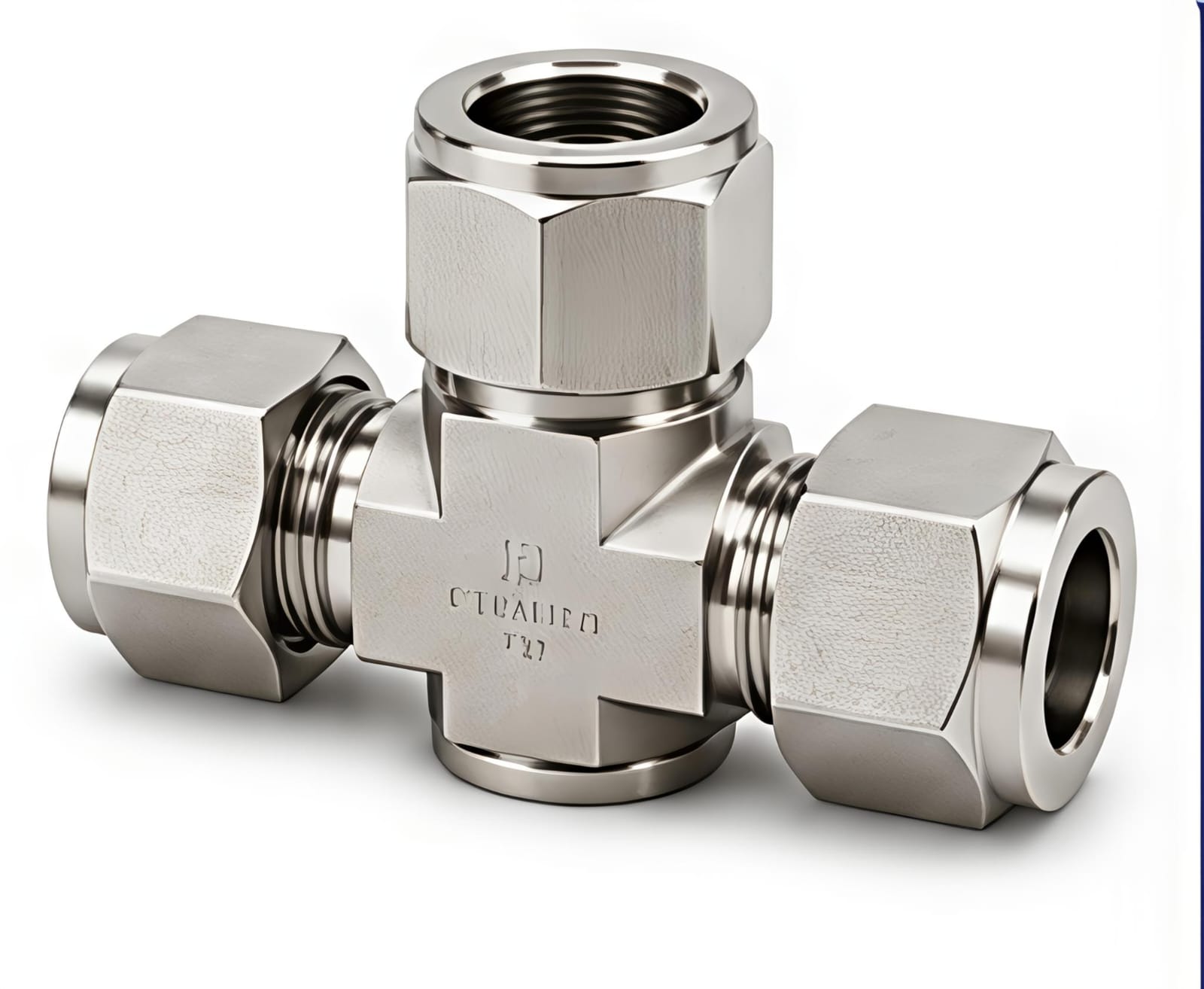

Cross Tube Union is a Four Way Connector with all Four ends having Ferrule type joint. It comprises of 13 precision engineered components as Body, 4 Nos Front Ferrules, 4 Nos Back Ferrules & 4 Nos Nuts. It is used for achieving High Pressure Leakproof Four way Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at all Four ends, to connect four separate tube pieces.

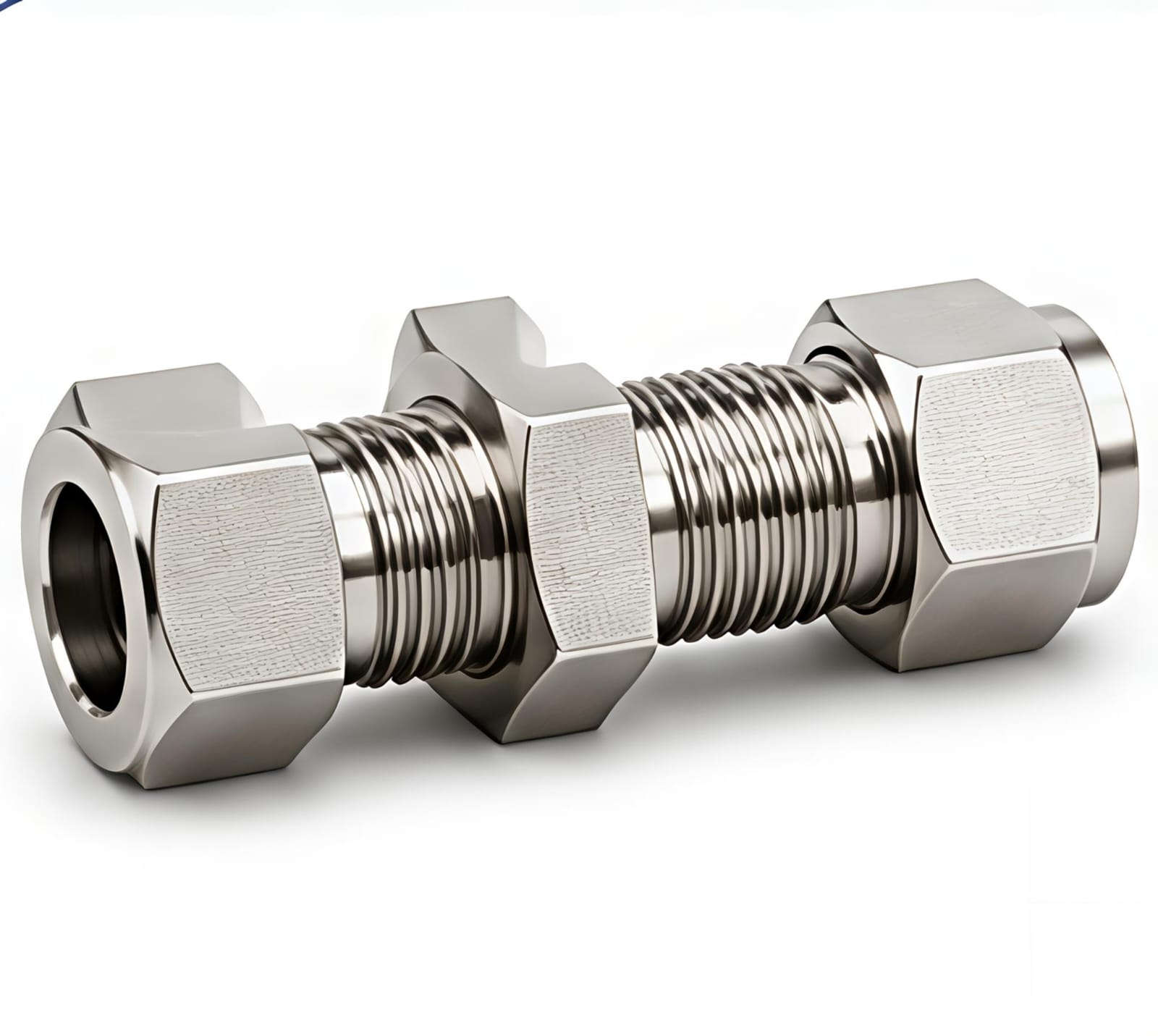

Bulkhead Union is a Straight Connector with Ferrule type joint at both ends, with provision of Panel Mounting arrangement. It comprises of Eight precision engineered components as Body, 2 Nos Front Ferrules, 2 Nos Back Ferrules, 2 Nos Nuts & 1 No Lock Nut. It is used for achieving High Pressure Leakproof Straight Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at both ends, with panel mounting arrangement.

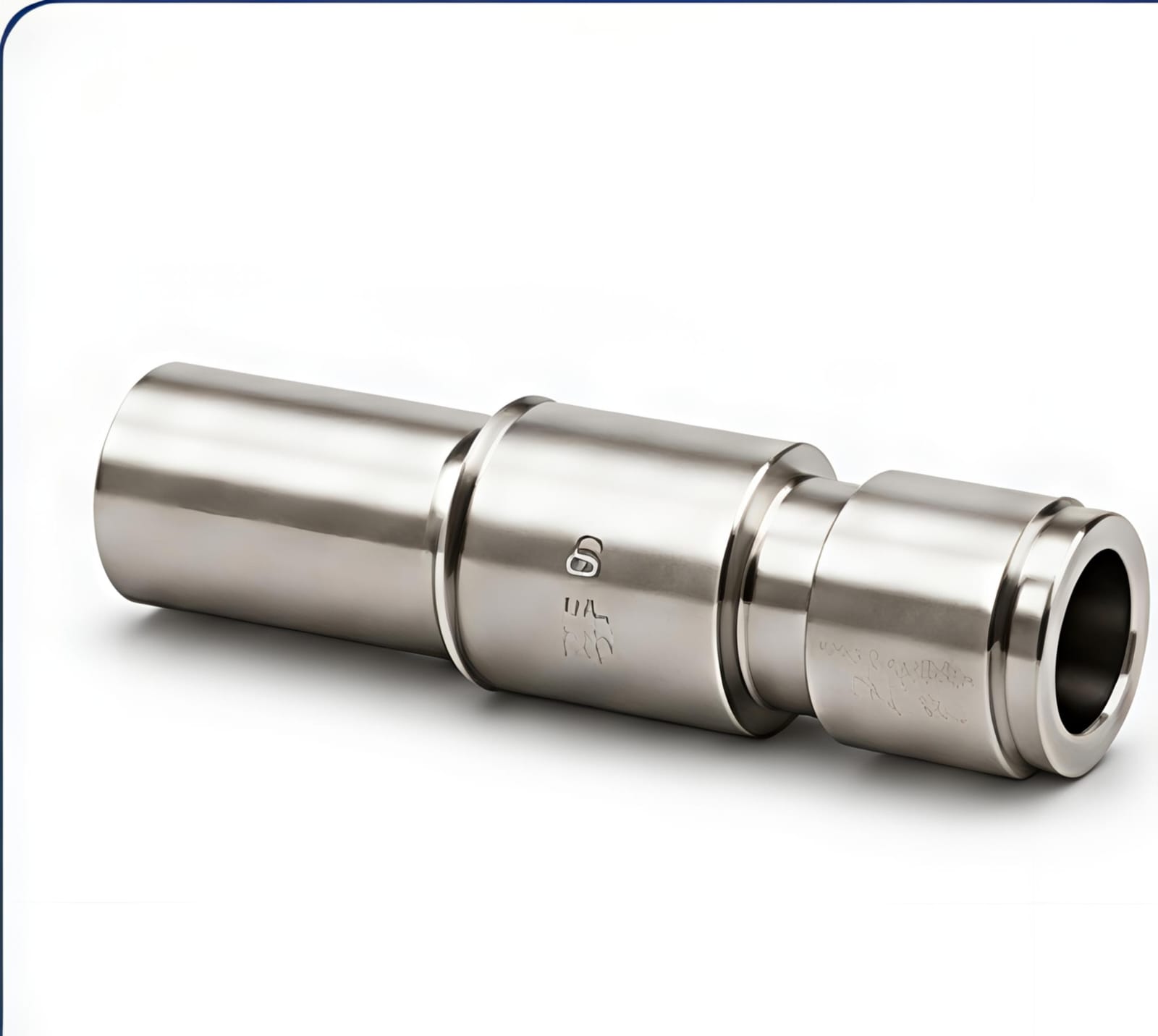

Reducer Tube Adaptor is a Straight Adaptor with Ferrule Type Joint on one end & Plain Tube End for swaging Ferrule Fitting on other end. Mainly used for Reducing existing Ferrule type Fitting end. It comprises of four precision engineered components as Body, Front Ferrule, Back Ferrule & Nut. It is used for achieving High Pressure Leakproof Straight Joint by swaging of Ferrules on Plain Tube End OD provided on one End of Adaptor to connect with open Tube end with Ferrules at second end.

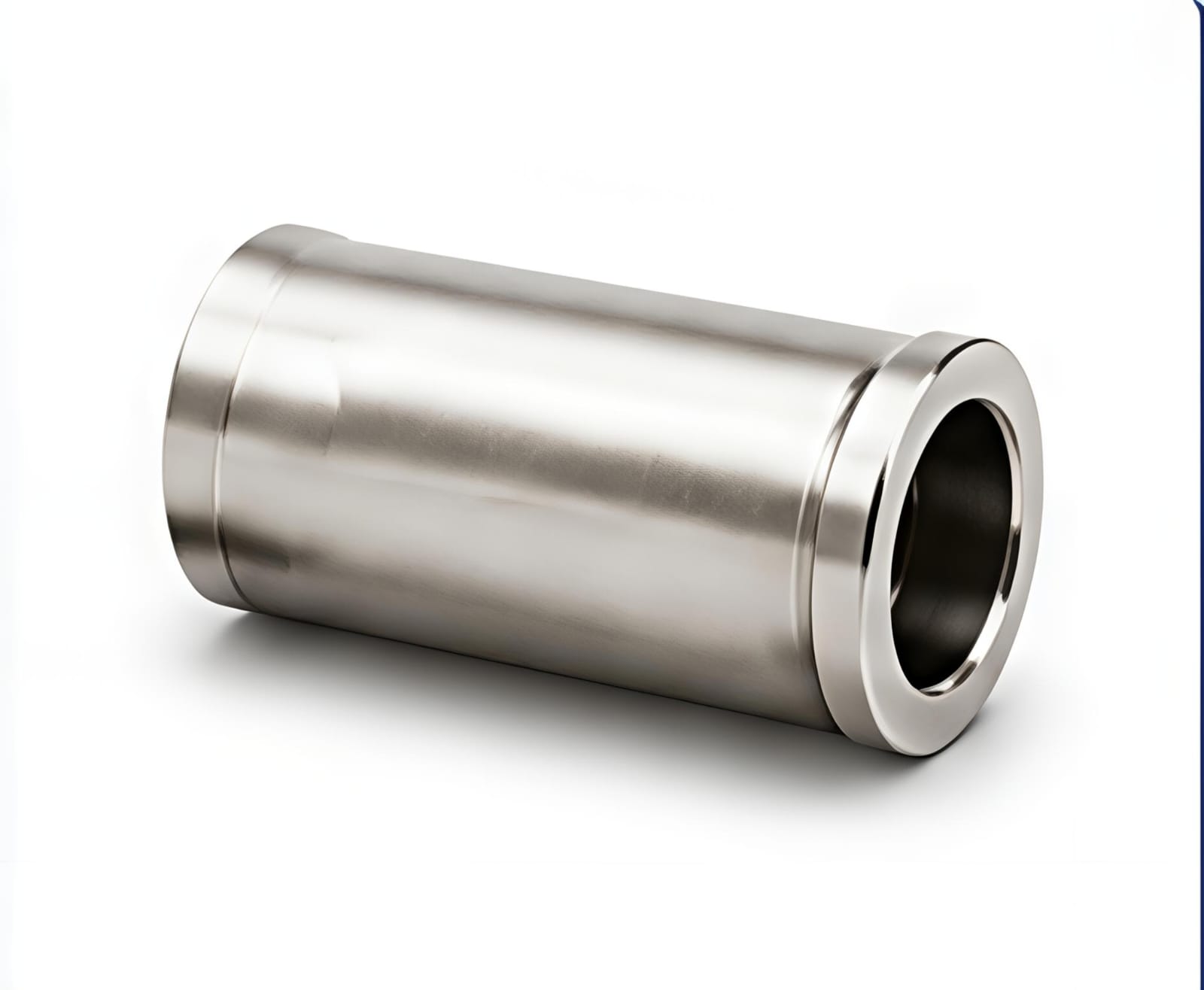

Pipe Buttweld Tube Connector is a Straight Adaptor with Ferrule Type Joint on one end & Plain Pipe End for Butt welding with Pipe on other end. Mainly used for connecting Pipe End with Tube end with Ferrule type Fitting. It comprises of four precision engineered components as Body, Front Ferrule, Back Ferrule & Nut. It is used for achieving High Pressure Leakproof Straight Joint Directly by Butt welding open pipe one End of Fitting and Ferrule Joint to connect Tube on second end.

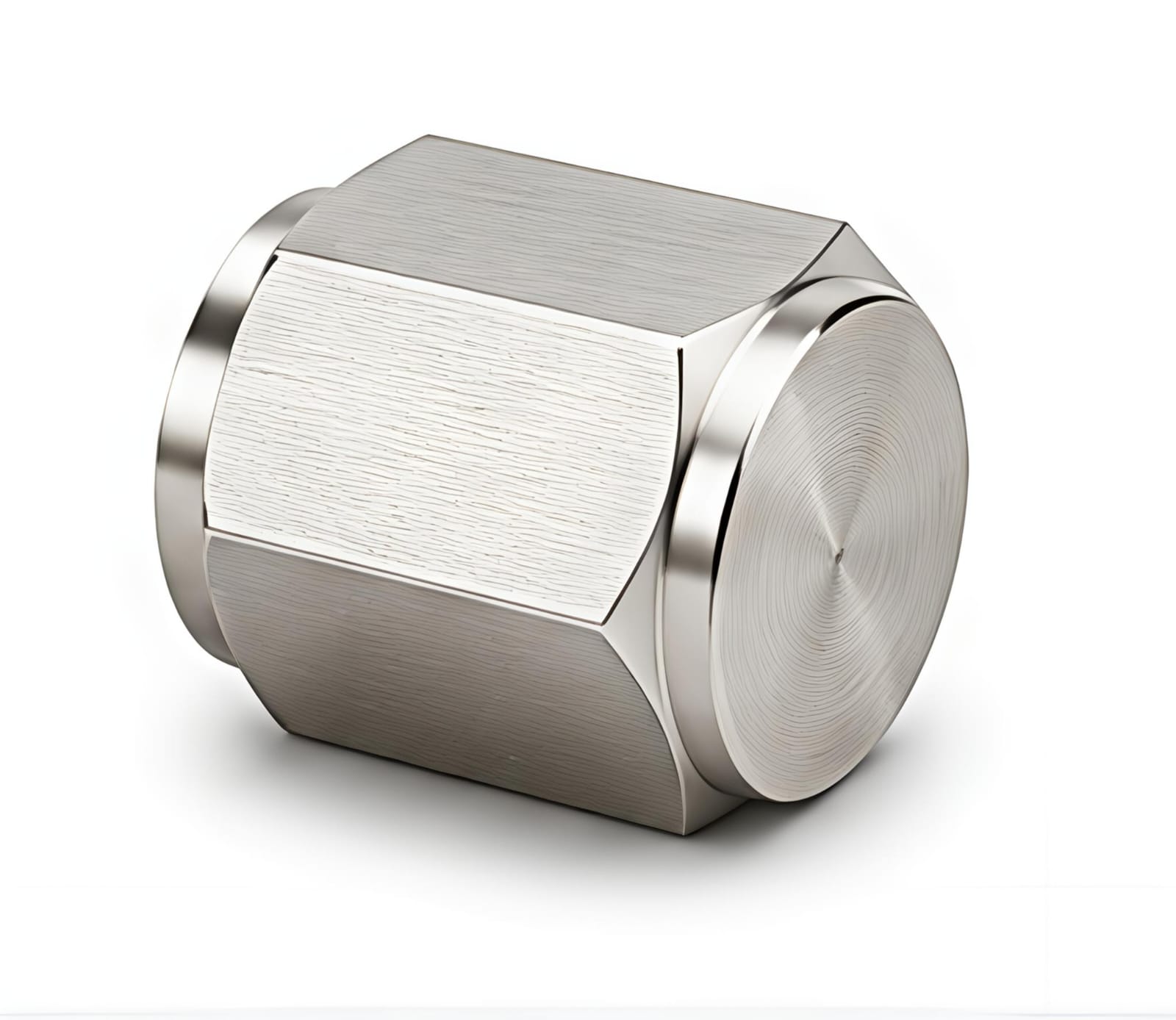

Tube End Closure is a cap with end having Ferrule type joint to Plug open end of Tube. It comprises of Four precision engineered components as Body, Front Ferrule, Back Ferrule & Nut. It is used for achieving High Pressure Leakproof Joint of Metal Tubing by swaging of Ferrules on OD of Tubing at End to plug the open Tube end.

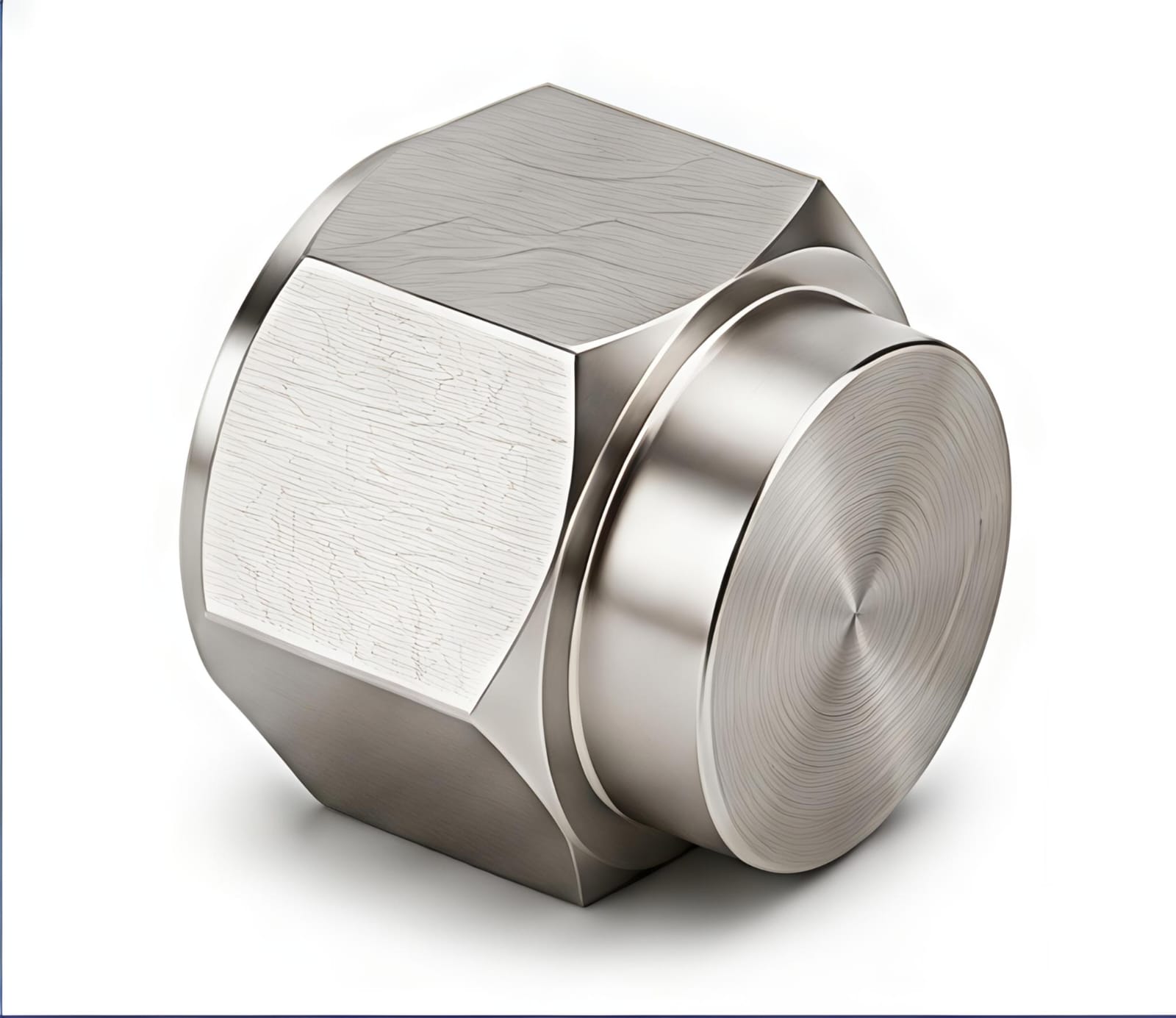

Tube End Closure is a Plug with end having Blind Plug to Plug open end of Tube Fitting Port. It comprises of three precision engineered components as Plug, Nut & Circlip. It is used for achieving High Pressure Leakproof Joint to Plug Tube Fitting’s open Tube Port

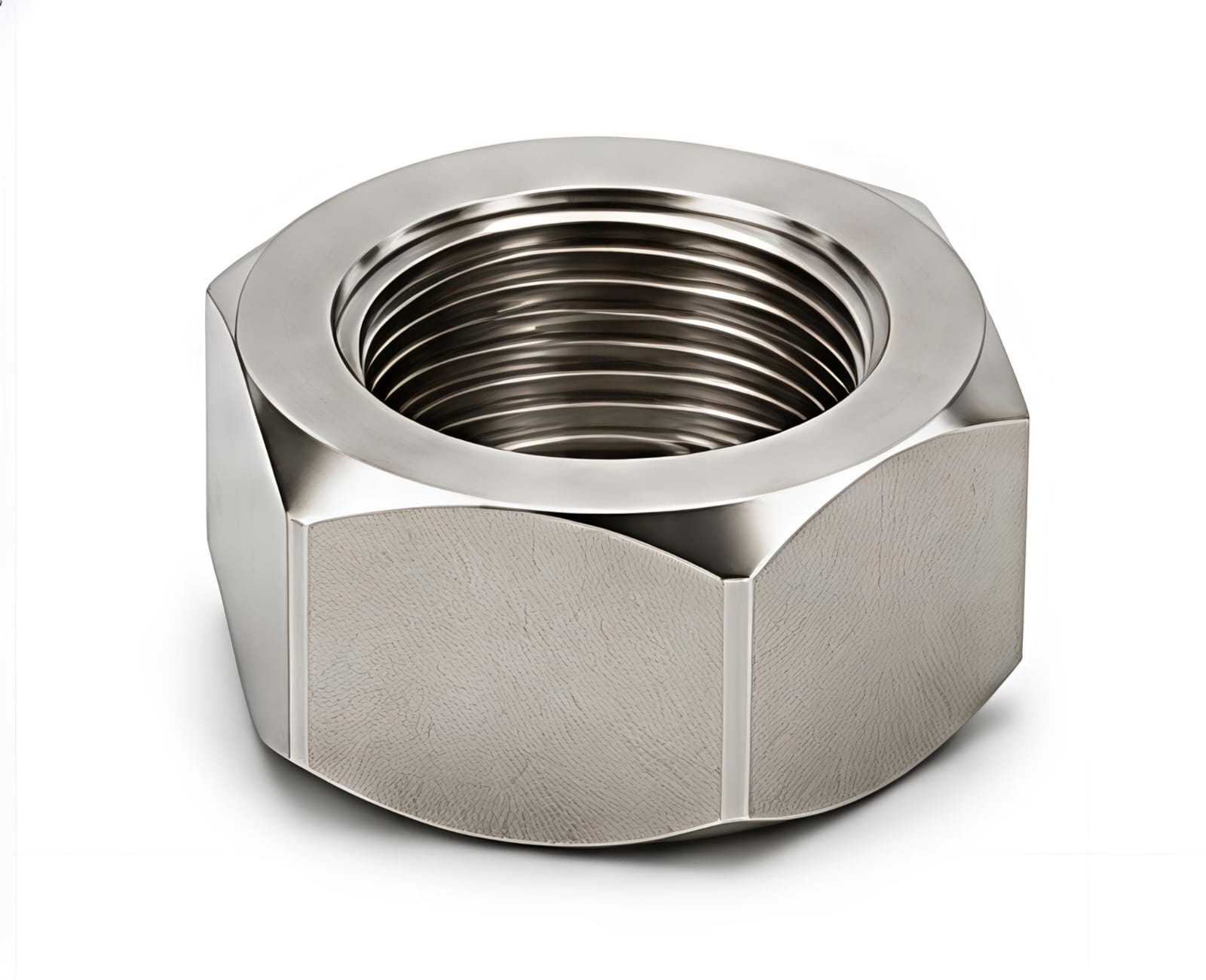

Spare Nuts are part of Tube Fittings assembly & are required as loose without assembly. It is used for achieving High Pressure Leakproof Joint of Ferrule type Fittings
Spare Ferrules are part of Tube Fittings assembly & are required as spare in case of Loss or damage. They comprise of two precision engineered components as Front Ferrule & Back Ferrule. They are used for achieving High Pressure Leakproof Joint of Ferrule type Fittings

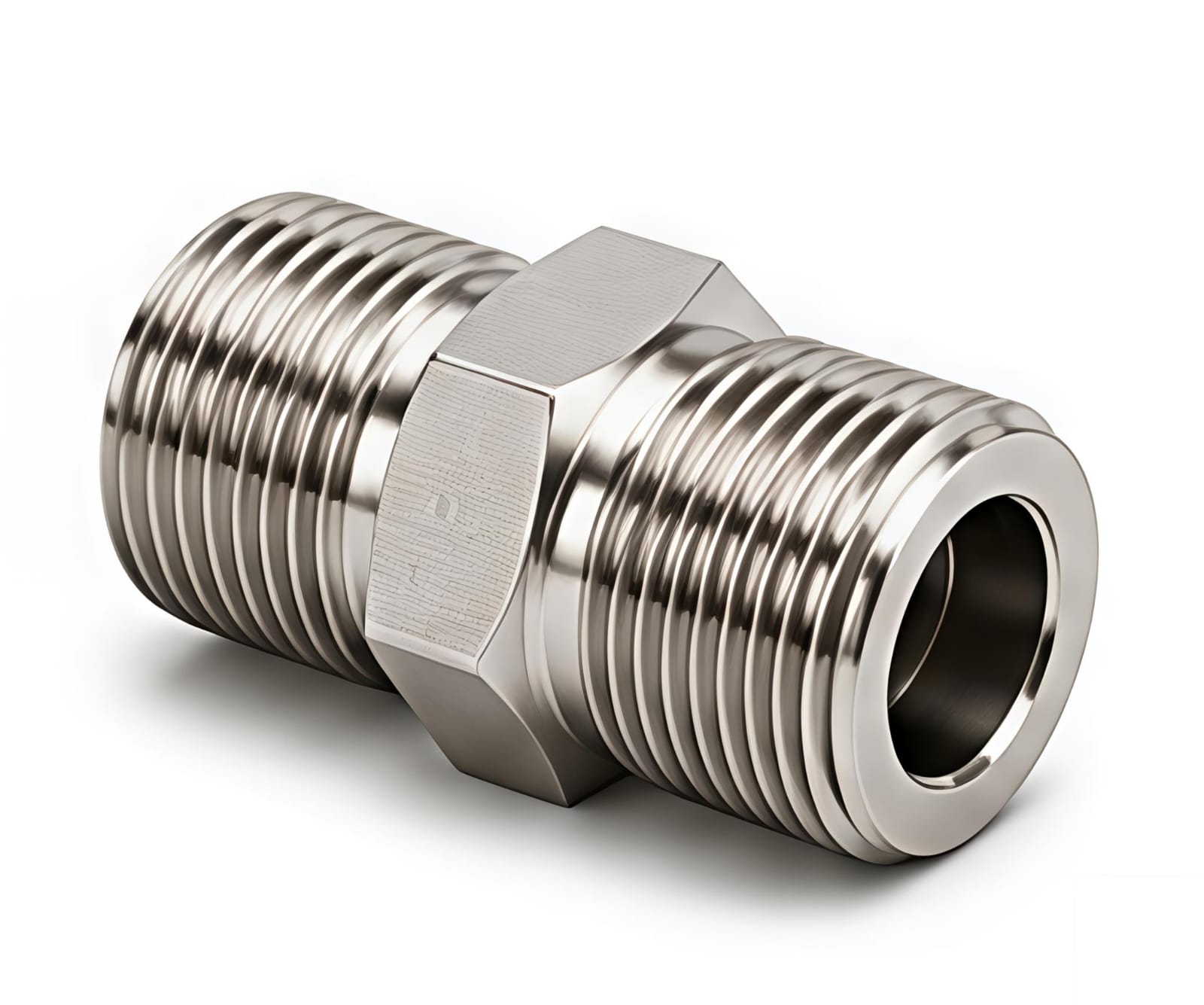

RAW matNfab Hex Nipple is a Straight Connector with Male Pipe Threads on both ends. It is a precision engineered component, used for achieving high pressure leakproof straight joint between two female threaded open ports.

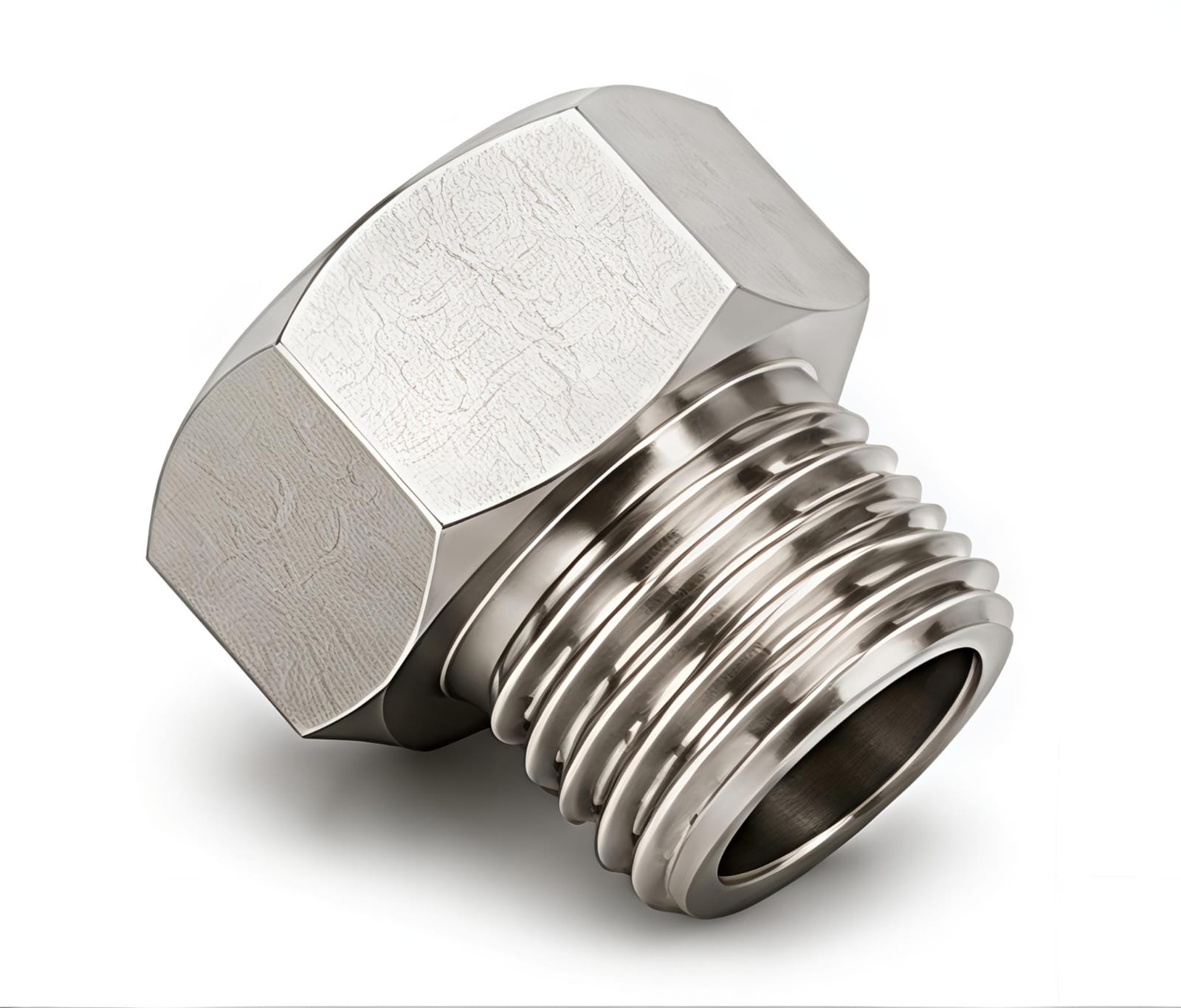

RAW matNfab Hex Plug is a precision machined component with Male Pipe Threads one end, blinded. It is used for Plugging Female Threaded open port for achieving high pressure leakproof joint.

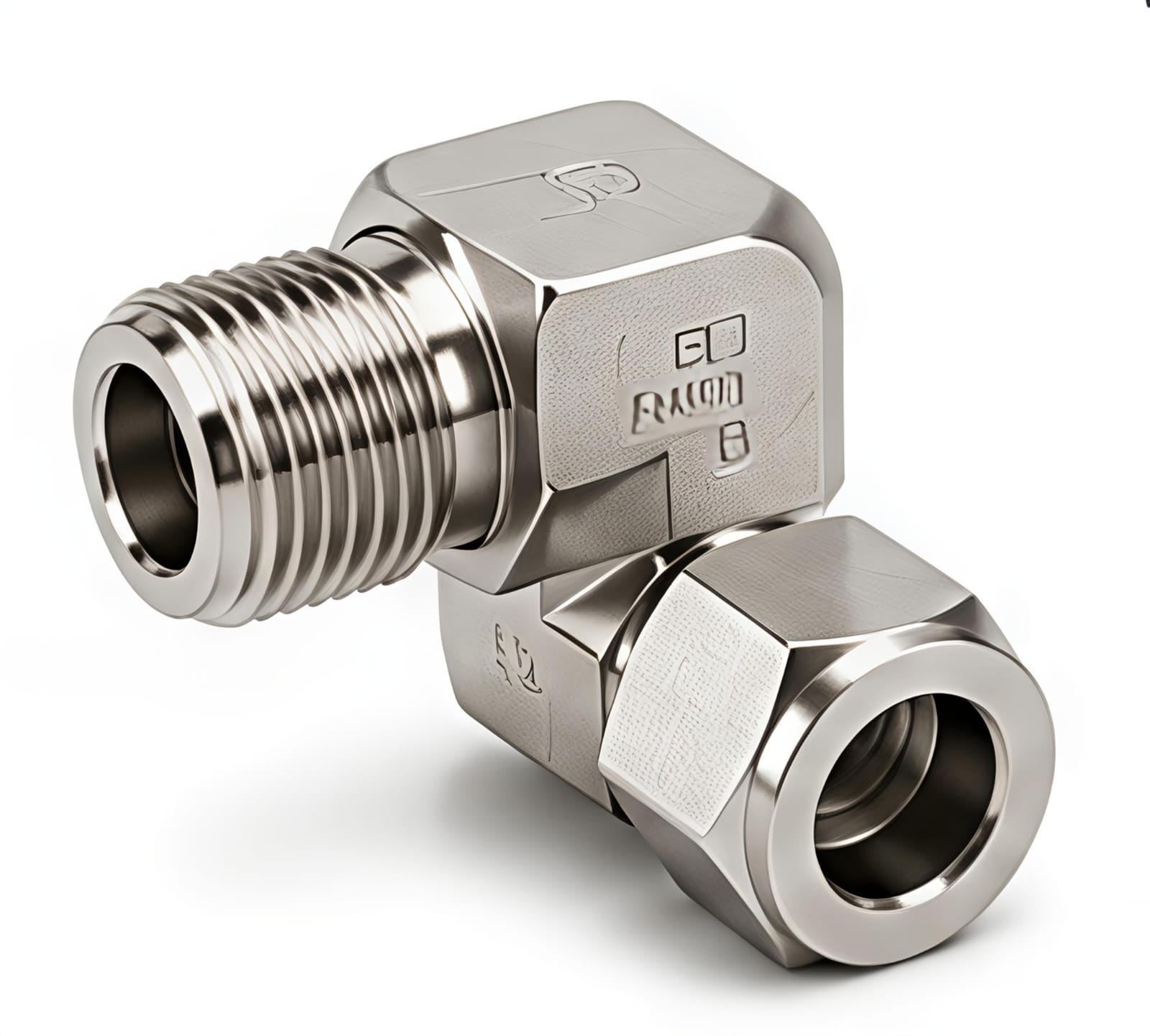

RAW matNfab Elbow Male Hex a 90 degree angular Connector with Male Pipe Threads on both ends. It is a precision engineered component, used for achieving high pressure leakproof straight joint between two female threaded open ports located at 90 degree angle.

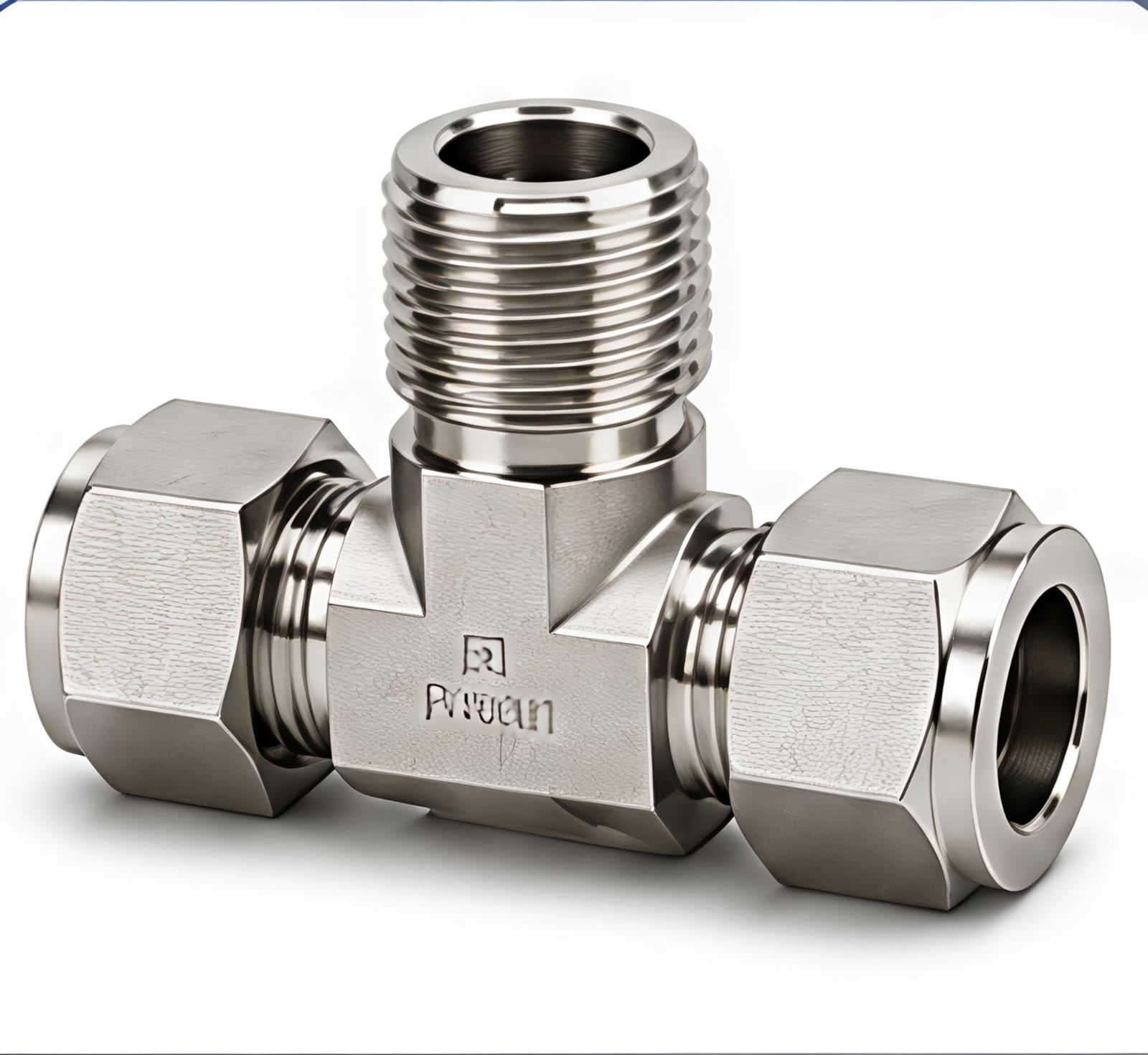

RAW matNfab Tee Male Hex is a Tee Connector with Male Pipe Threads on all three Sides of a Tee Joint. It is a precision engineered component, used for achieving high pressure leakproof Tee joint between three female threaded open ports.

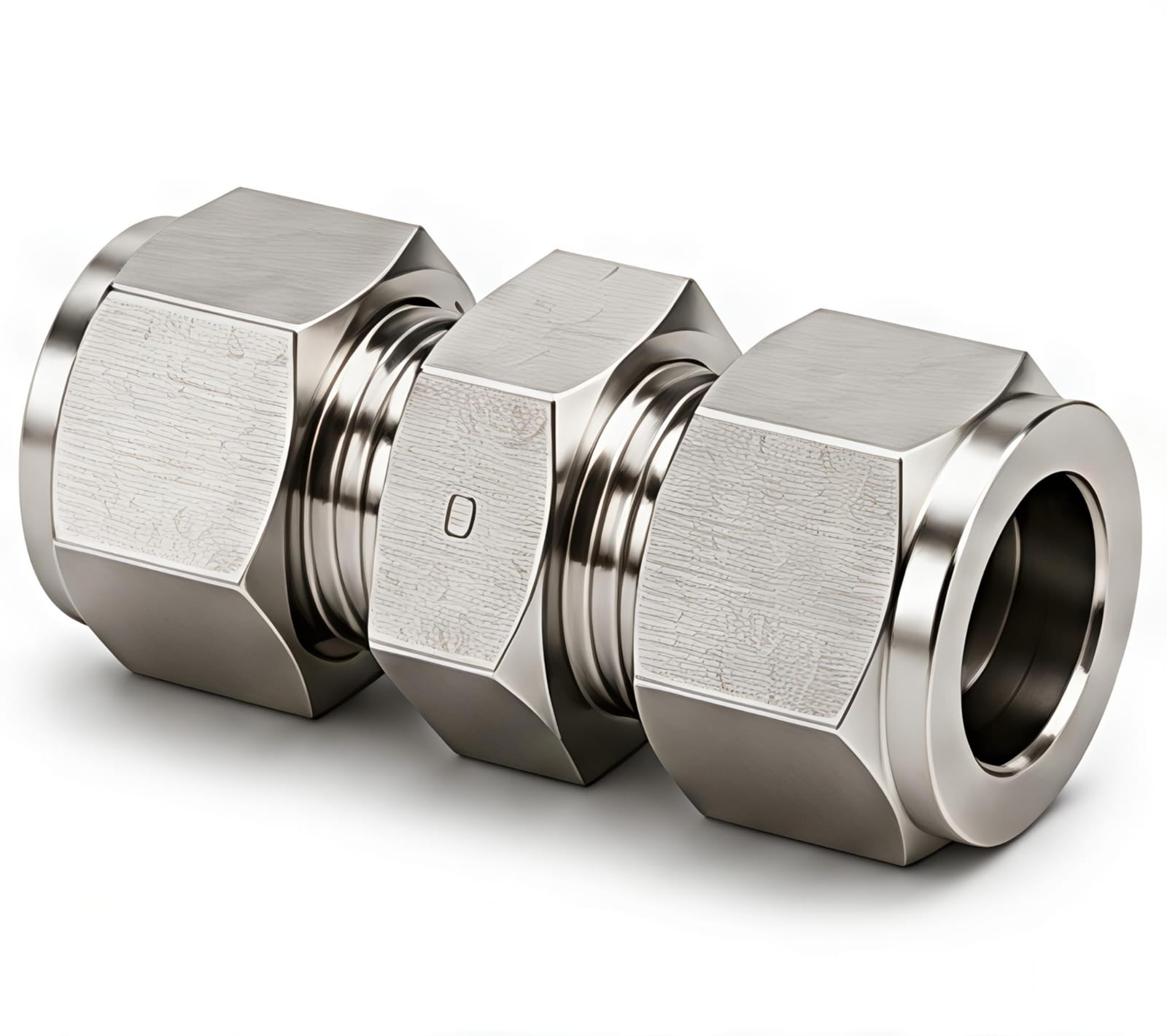

RAW matNfab Hex Coupling is a Straight Connector with Female Pipe Threads on both ends. It is a precision engineered component, used for achieving high pressure leakproof straight joint between two Male threaded open ports

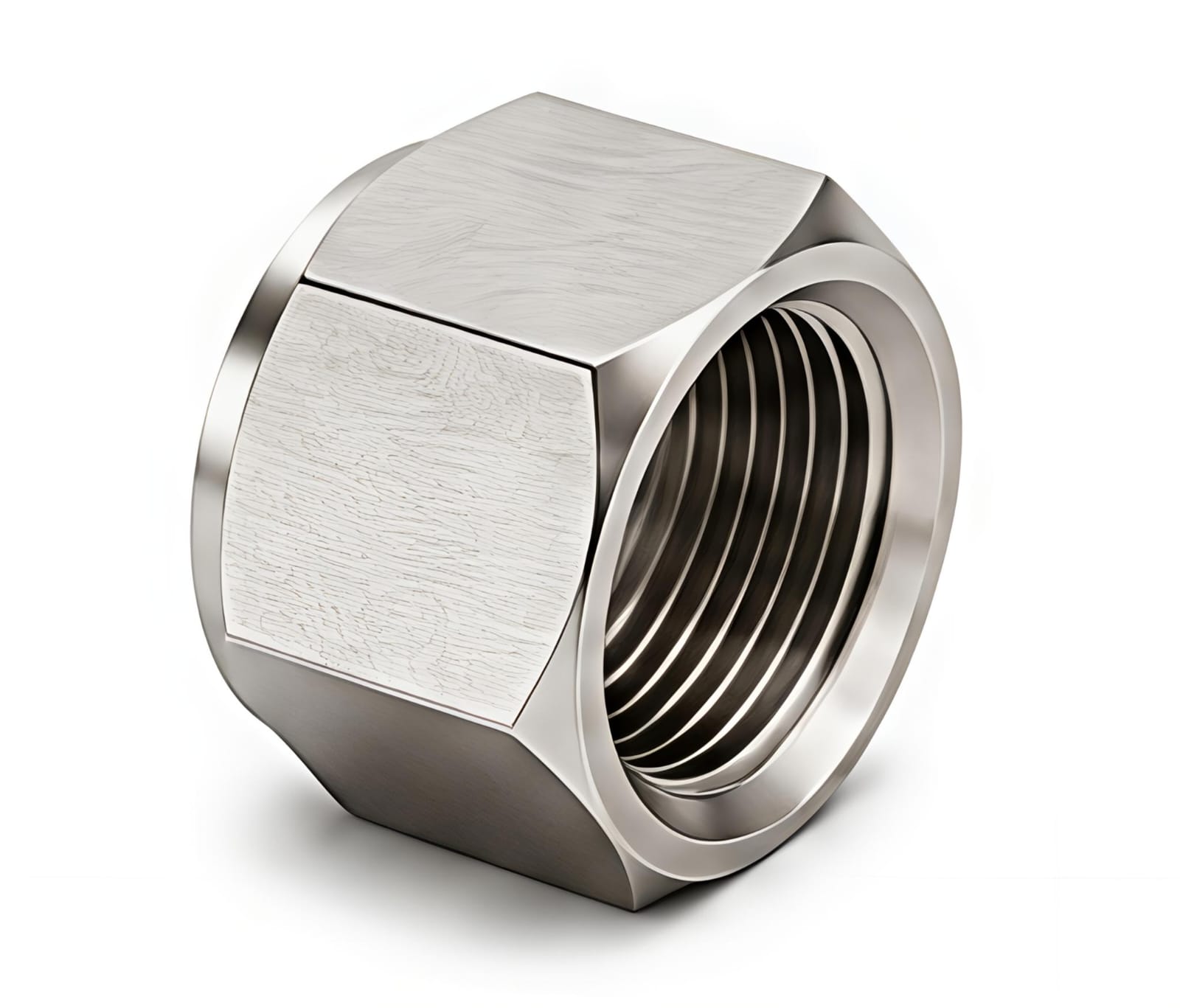

RAW matNfab Hex Cap is a precision machined component with Female Pipe Threads one end blinded. It is used for Plugging Male Threaded open port for achieving high pressure leakproof joint.

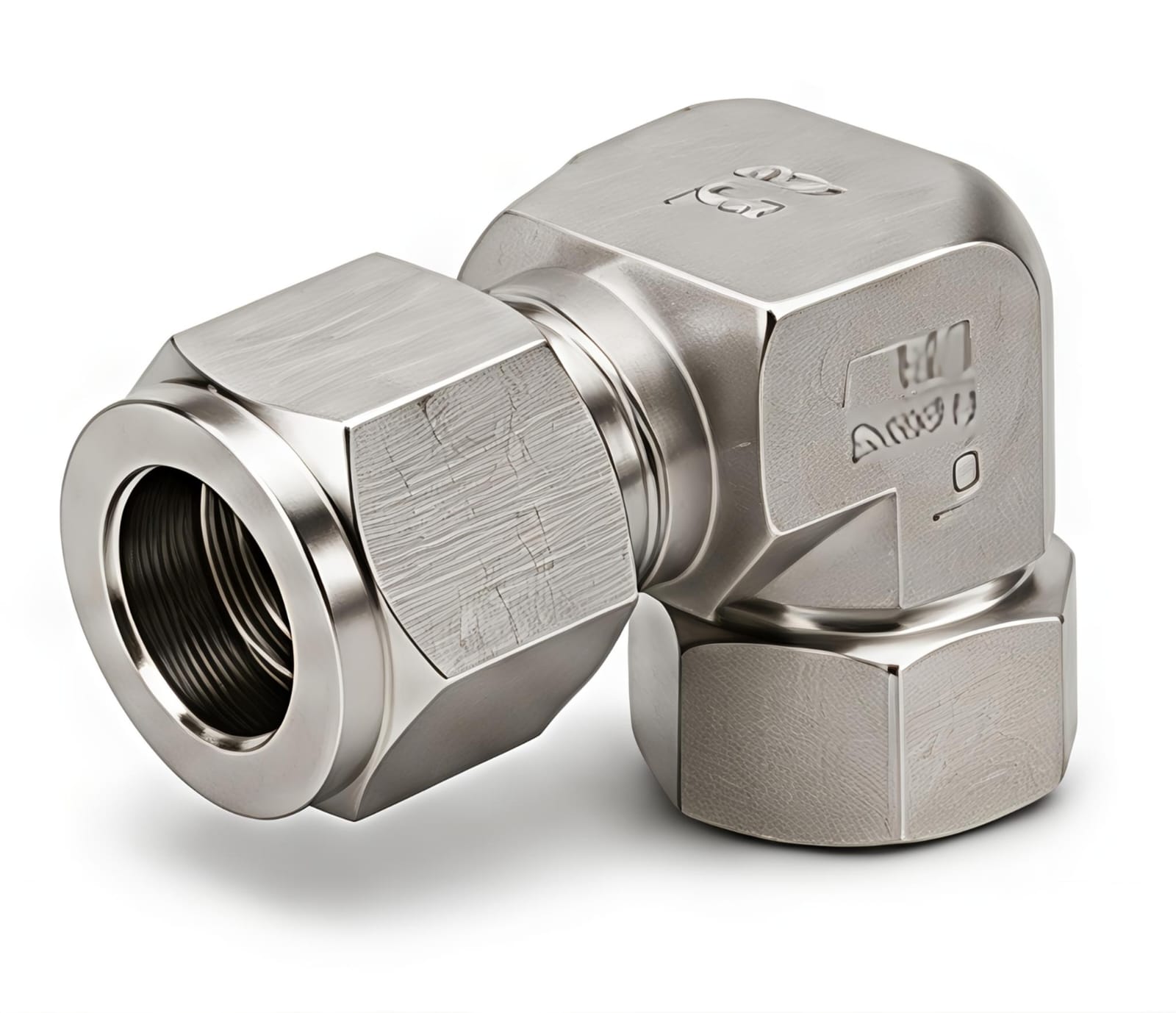

RAW matNfab Elbow Female Hex a 90 degree angular Connector with Female Pipe Threads on both ends. It is a precision engineered component, used for achieving high pressure leakproof straight joint between two Male threaded open ports located at 90 degree angle.

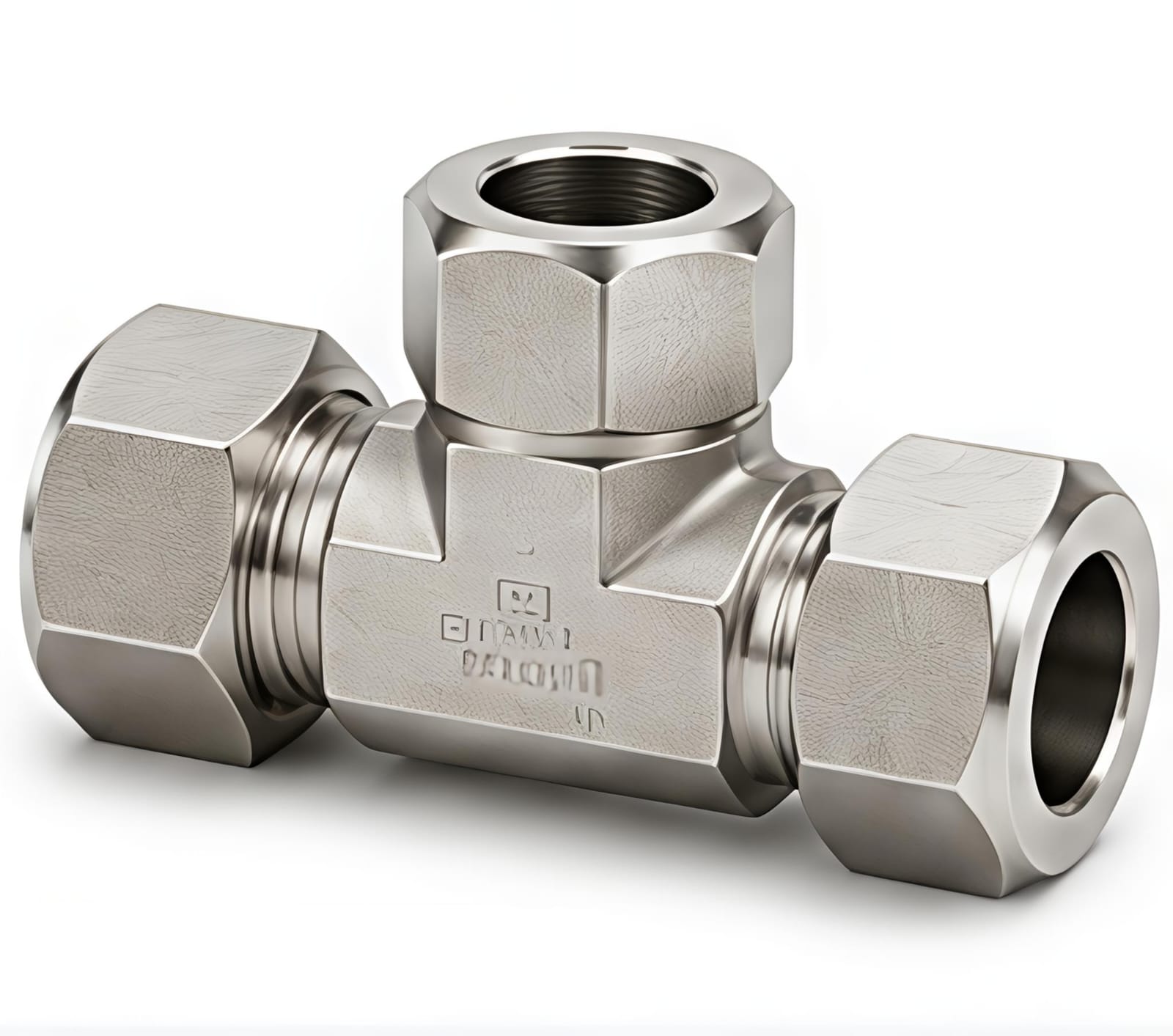

RAW matNfab Tee Female Hex is a Tee Connector with Female Pipe Threads on all three Sides of a Tee Joint. It is a precision engineered component, used for achieving high pressure leakproof Tee joint between three Male threaded open ports.

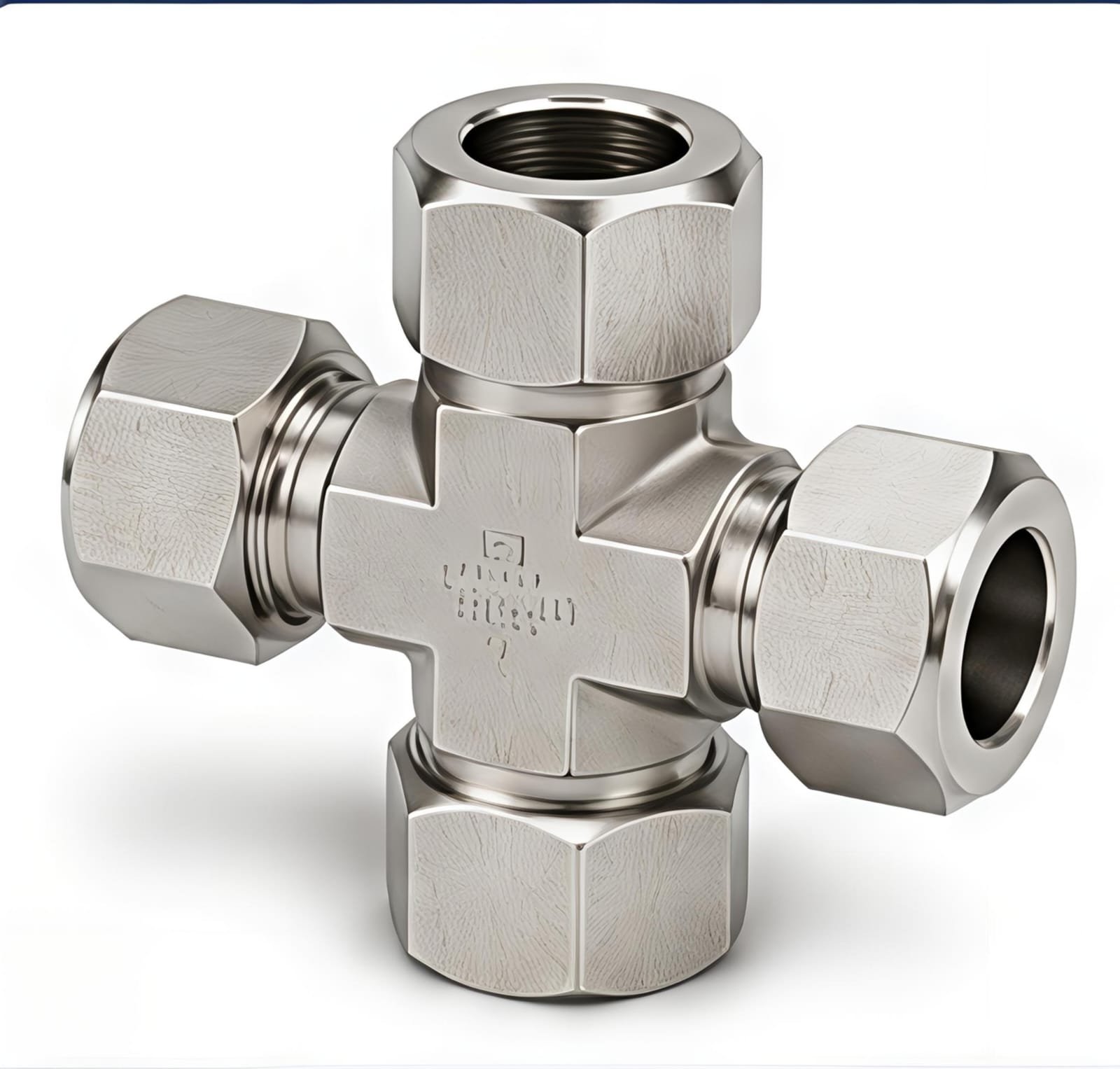

RAW matNfab Cross Female Hex is a four way Connector with Female Pipe Threads on all four Sides of the joint. It is a precision engineered component, used for achieving high pressure leakproof cross joint between Four Male threaded open ports.

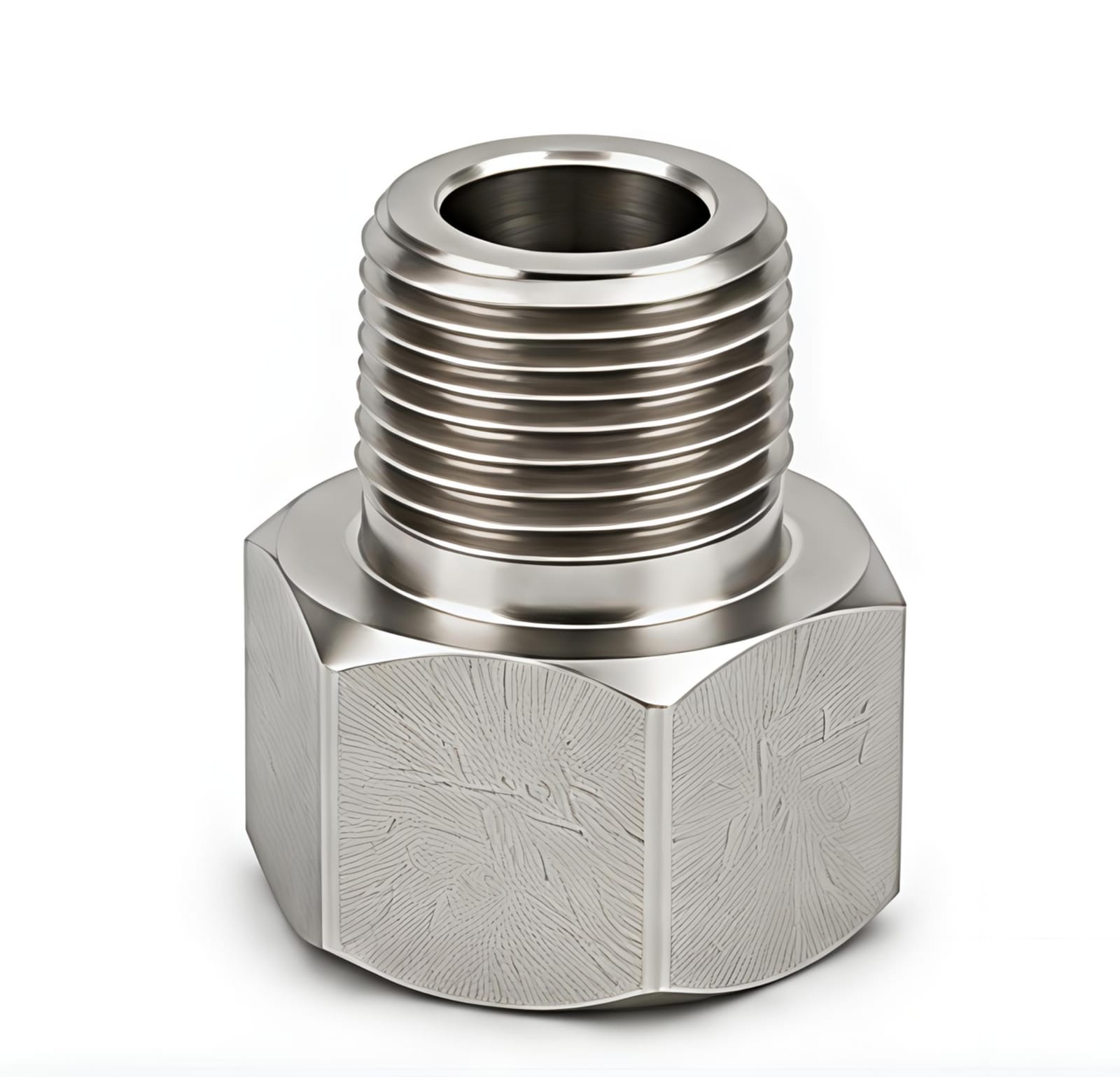

RAW matNfab Hex Reducer is a Straight Connector with Male Pipe Threads on one end and Female Reducing Pipe Threads on other End. It is a precision engineered component, used for achieving high pressure leakproof straight joint of female threaded open port with reducing male threaded open port.

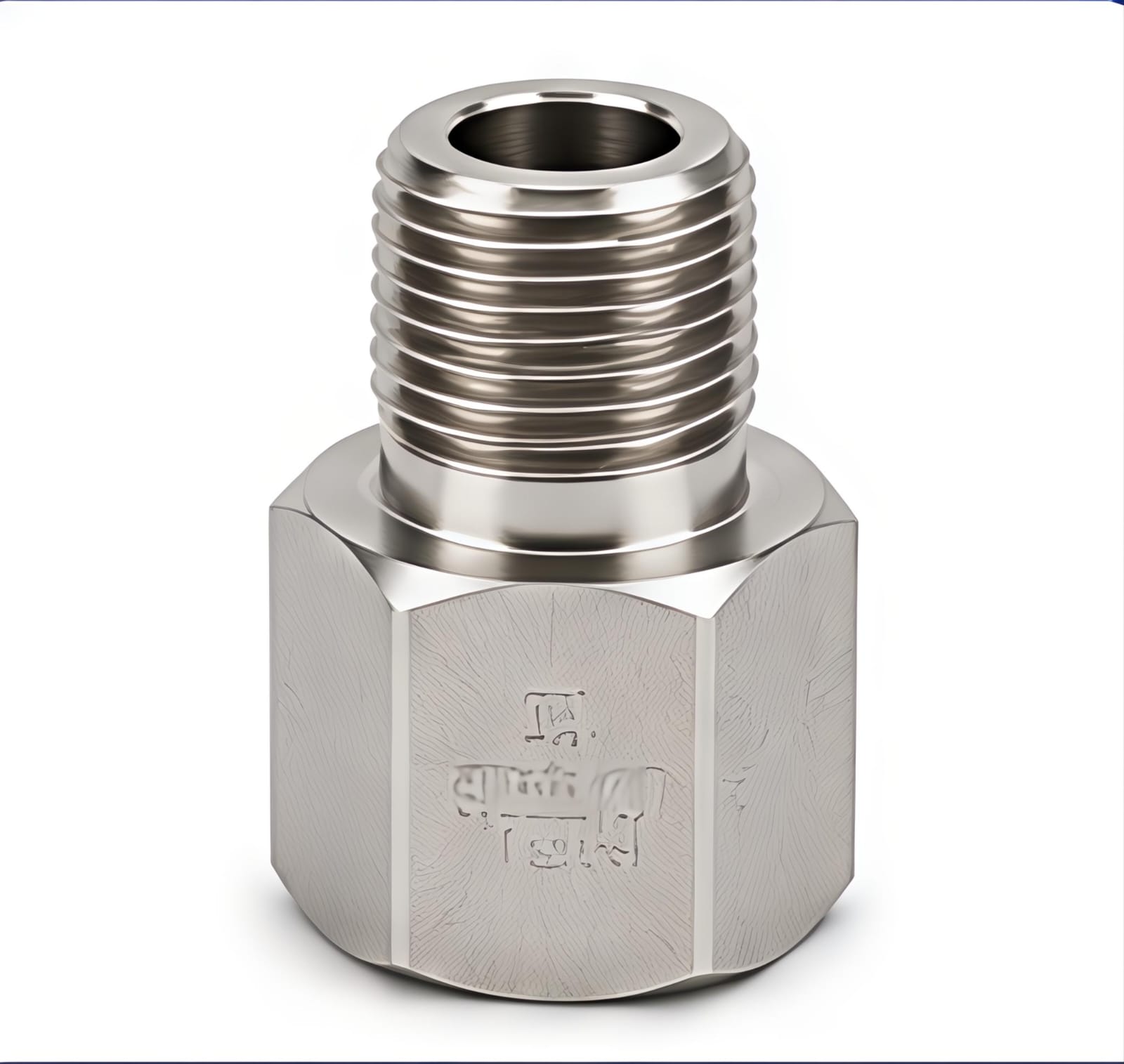

RAW matNfab Hex Adaptor is a Straight Connector with Female Pipe Threads on one end and Male Reducing Pipe Threads on other End. It is a precision engineered component, used for achieving high pressure leakproof straight joint of Male threaded open port with reducing Female threaded open port.

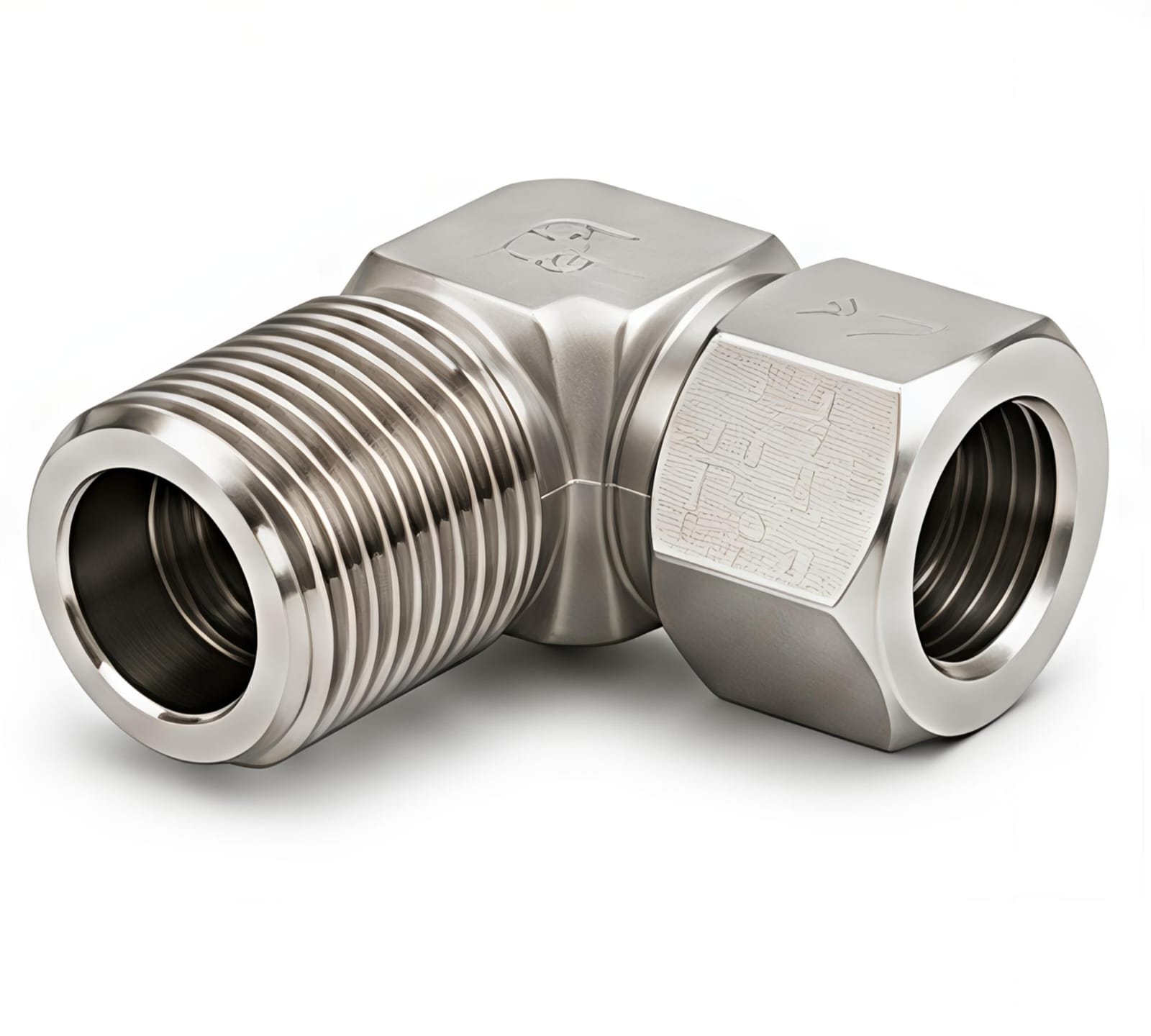

RAW matNfab Elbow Male Female Hex a 90 degree angular Connector with Male Pipe Threads on one end & Female Pipe Threads on second end. It is a precision engineered component, used for achieving high pressure leakproof straight joint of female threaded open port with male threaded open port located at 90 degree angle.

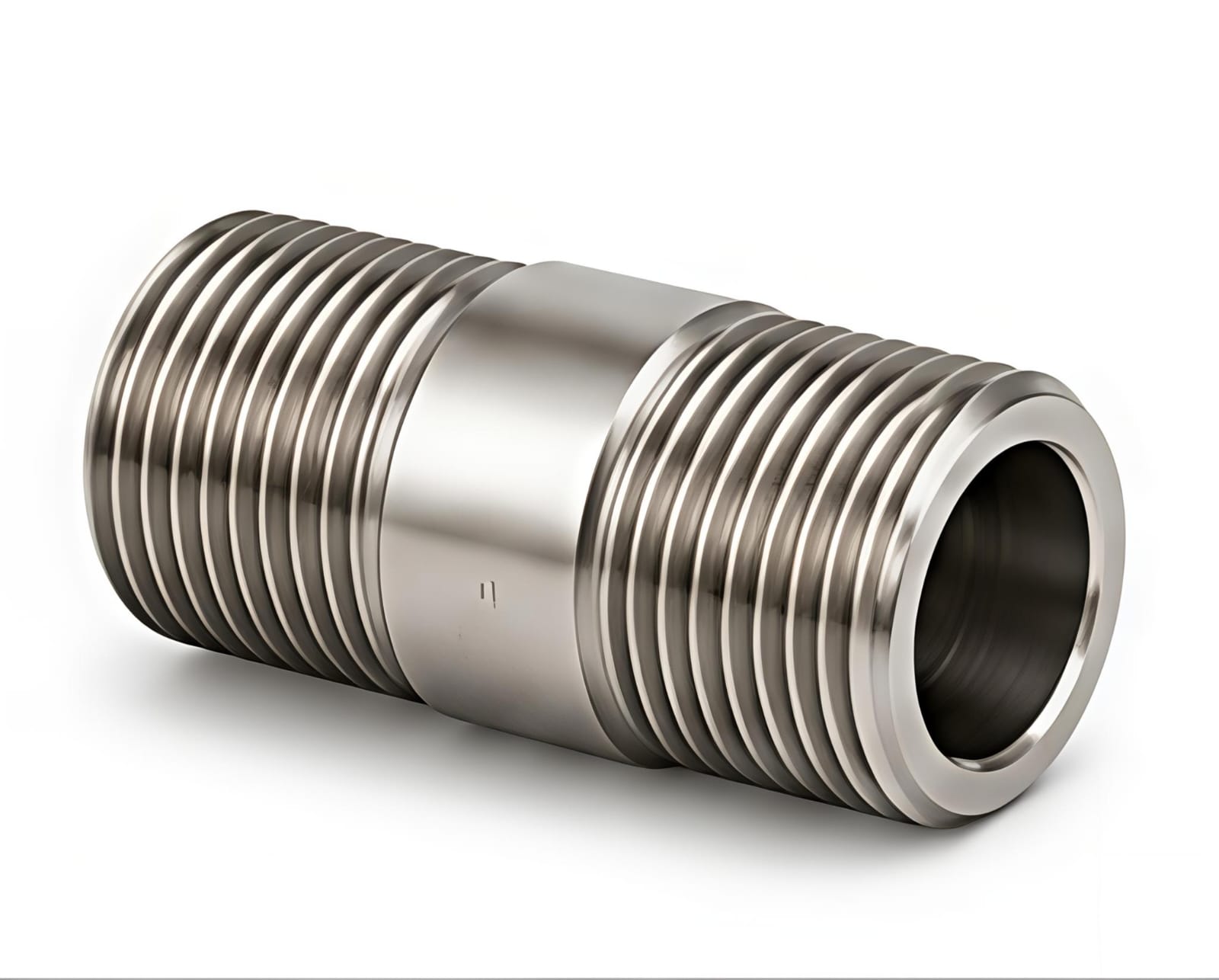

RAW matNfab Pipe Nipple is a Straight Connector, manufactured from Pipe, with Male Pipe Threads machined on one or both ends. It is a precision machined component, used for achieving leakproof straight joint between two open ports by threading or welding as per design.

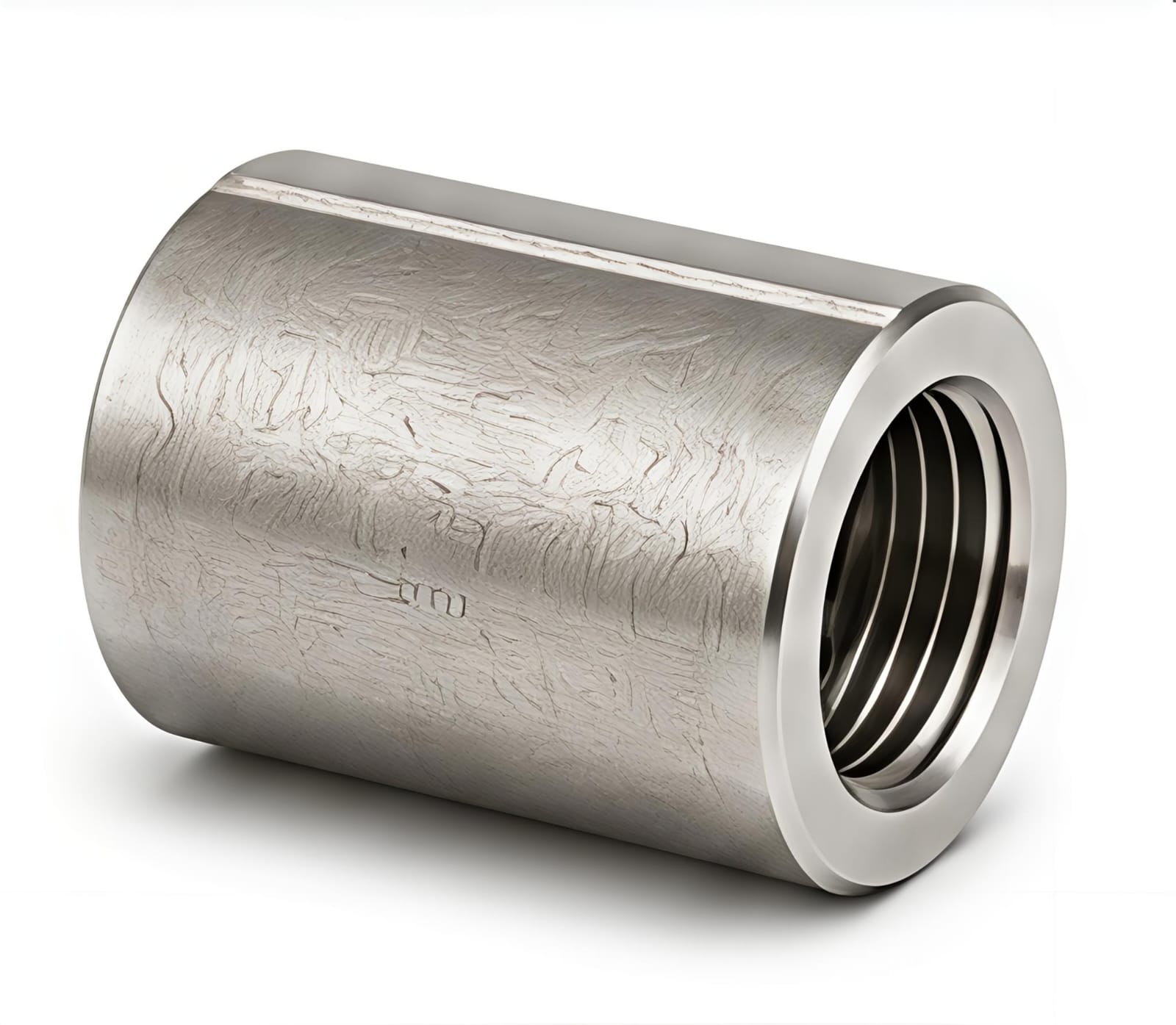

RAW matNfab Pipe Coupling Screwed is a Straight Connector with Female Pipe Threads on both ends. It is a precision engineered component, used for achieving high pressure leakproof straight joint between two Male threaded open ports. Alternatively it is also available as Half Coupling suitable for Welding one End on an open area & connecting other end with Male threaded Open port.

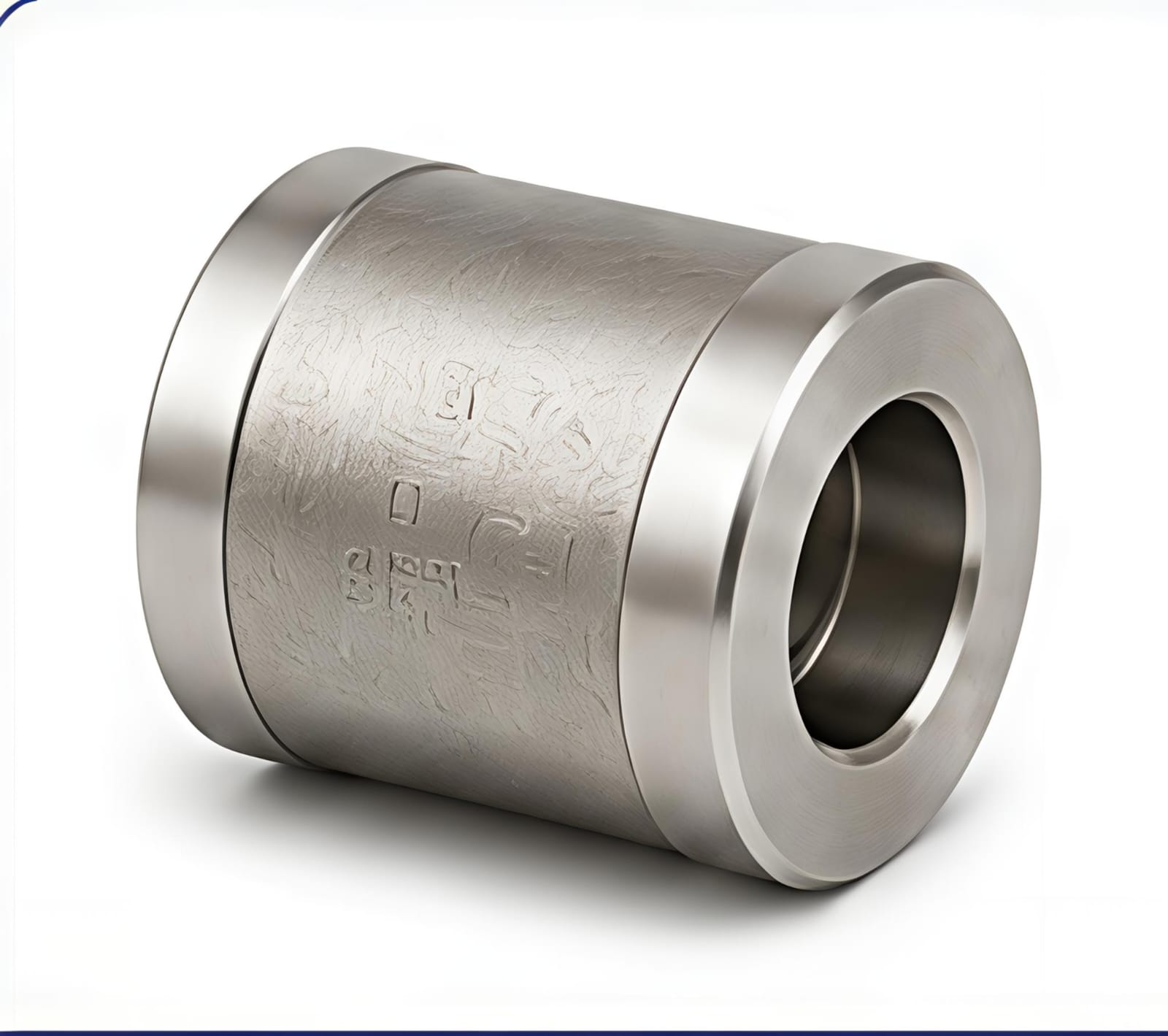

RAW matNfab Pipe Coupling Socket weld is a Straight Connector with Female Pipe Socket on both ends. It is a precision engineered component, used for achieving high pressure leakproof straight joint between two open pipe ports by Socket welding. Alternatively it is also available as Half Coupling suitable for Welding one End on an open area & other end socket welded with Open Pipe port.

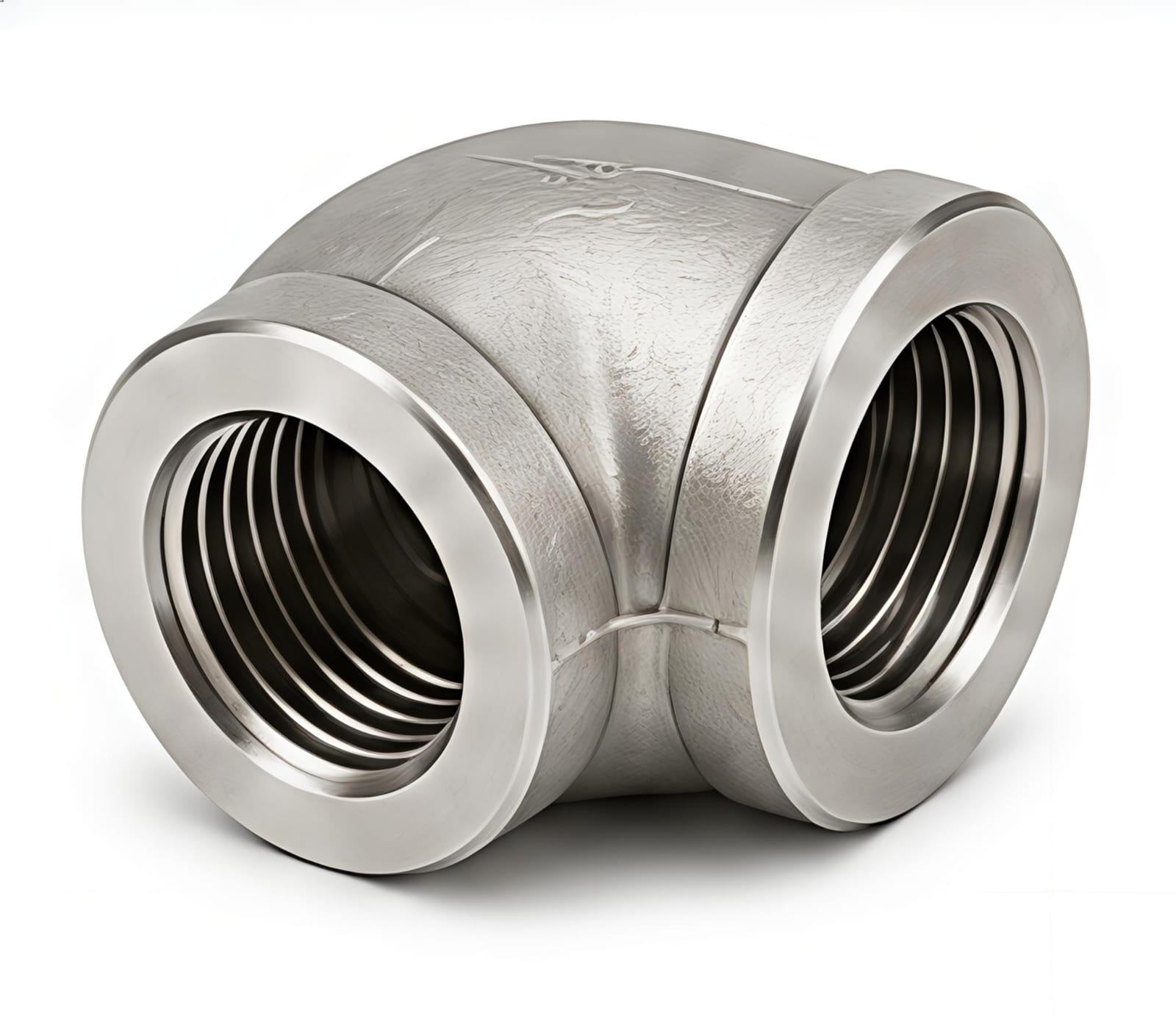

RAW matNfab Pipe Elbow Screwed/ SW is a 90 degree angular Connector with Female Pipe Threads or Socket Weld Type Connection on both ends. It is a precision engineered component, used for achieving high pressure leakproof joint between two Male threaded open ports or Pipe open ports located at 90 degree angle, by threading or welding as per design
RAW matNfab Elbow Female Hex a 90 degree angular Connector with Female Pipe Threads on both ends. It is a precision engineered component, used for achieving high pressure leakproof straight joint between two Male threaded open ports located at 90 degree angle.

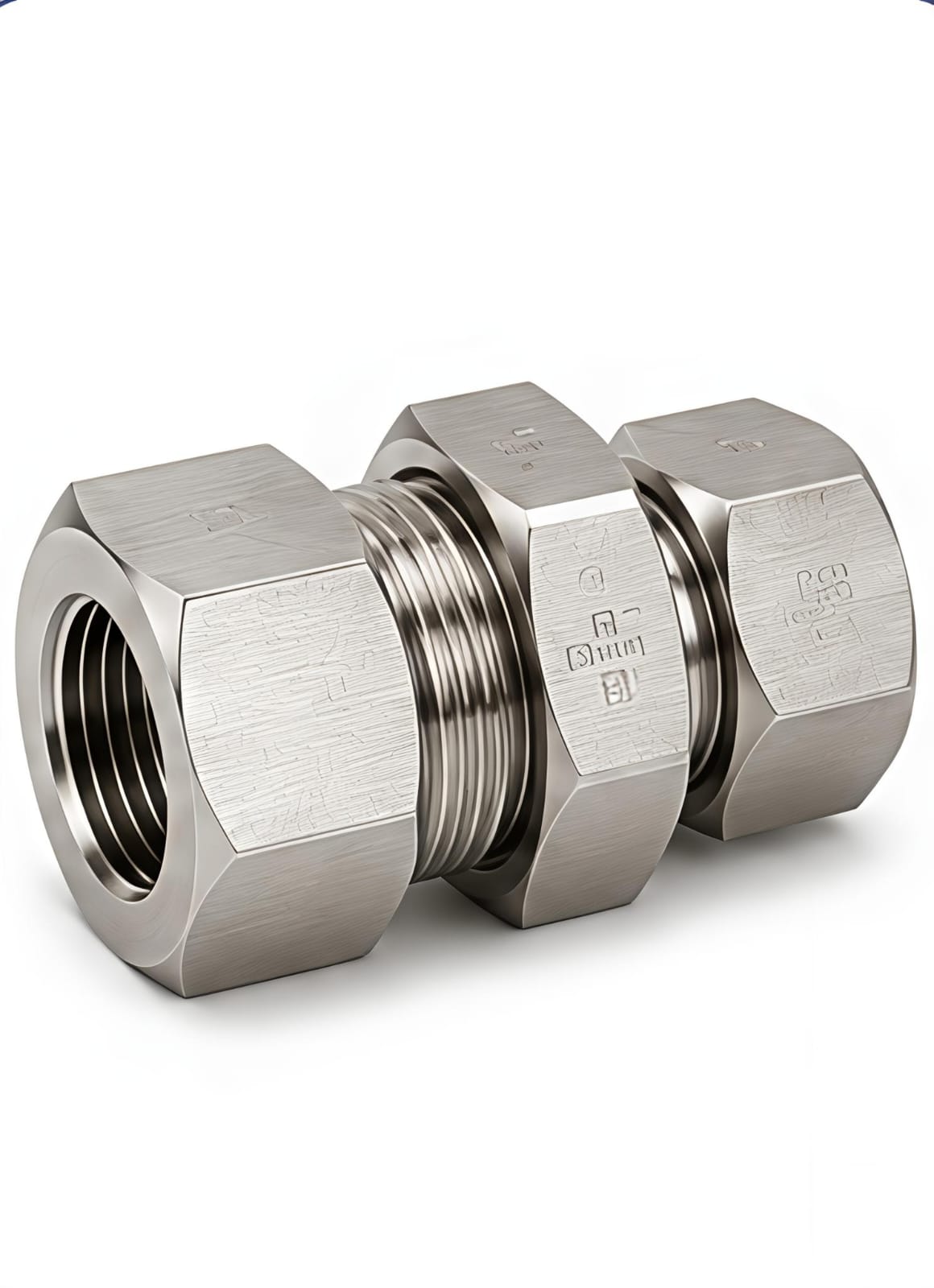

RAW matNfab Pipe Union Screwed/ SW is a Straight Connector with Female Pipe Threads or Socket Weld Type Connection on both ends. It has a provision for opening the Line connected, without disturbing Joints at both Ends. It comprises of precision engineered components as Body, Nut, Nipple & Soft Seal. It is used for achieving high pressure leakproof joint between two Male threaded open ports or Pipe open ports by threading or welding as per design, with a provision to open the Connection without disturbing Joints at both ends.

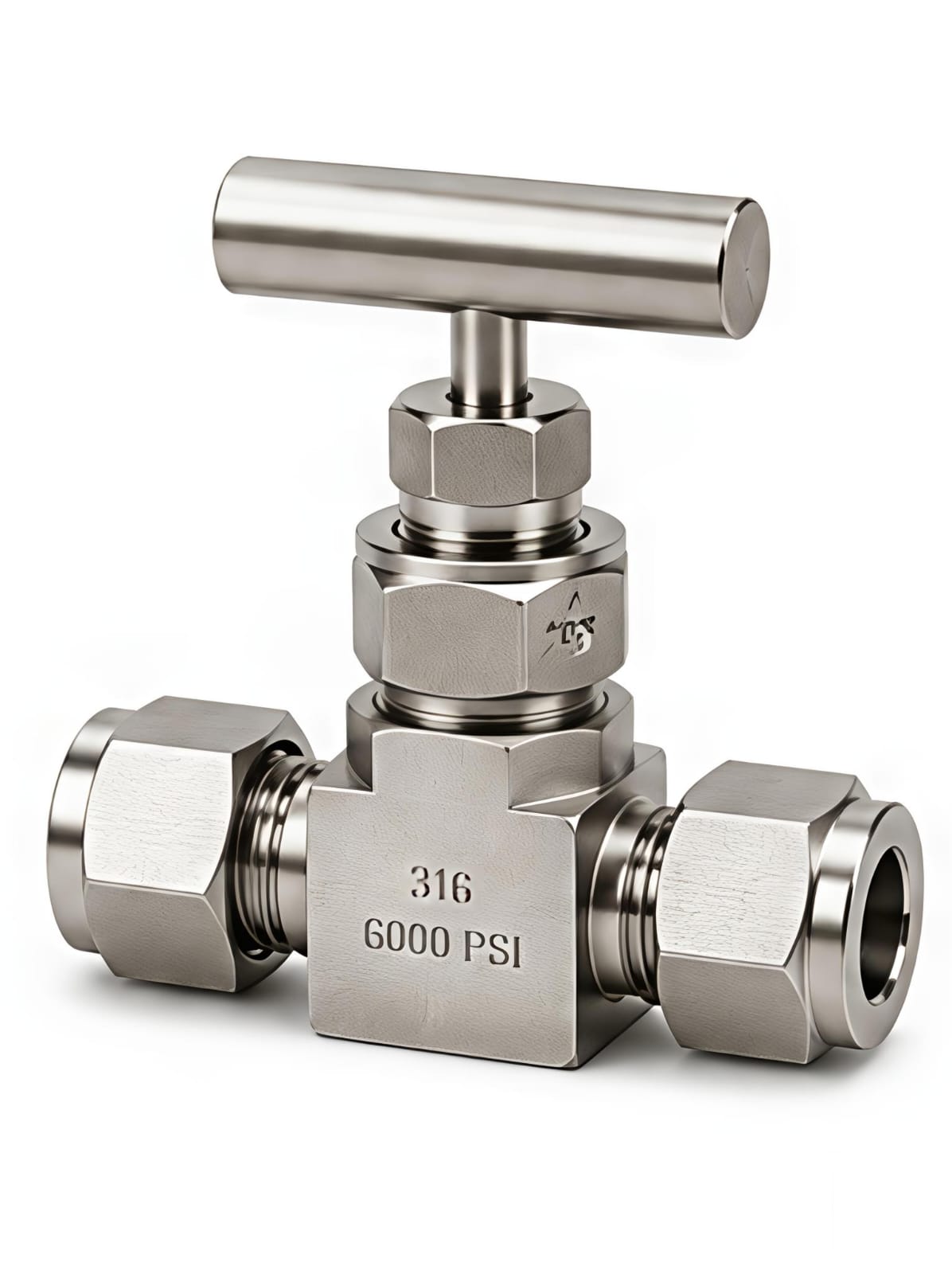

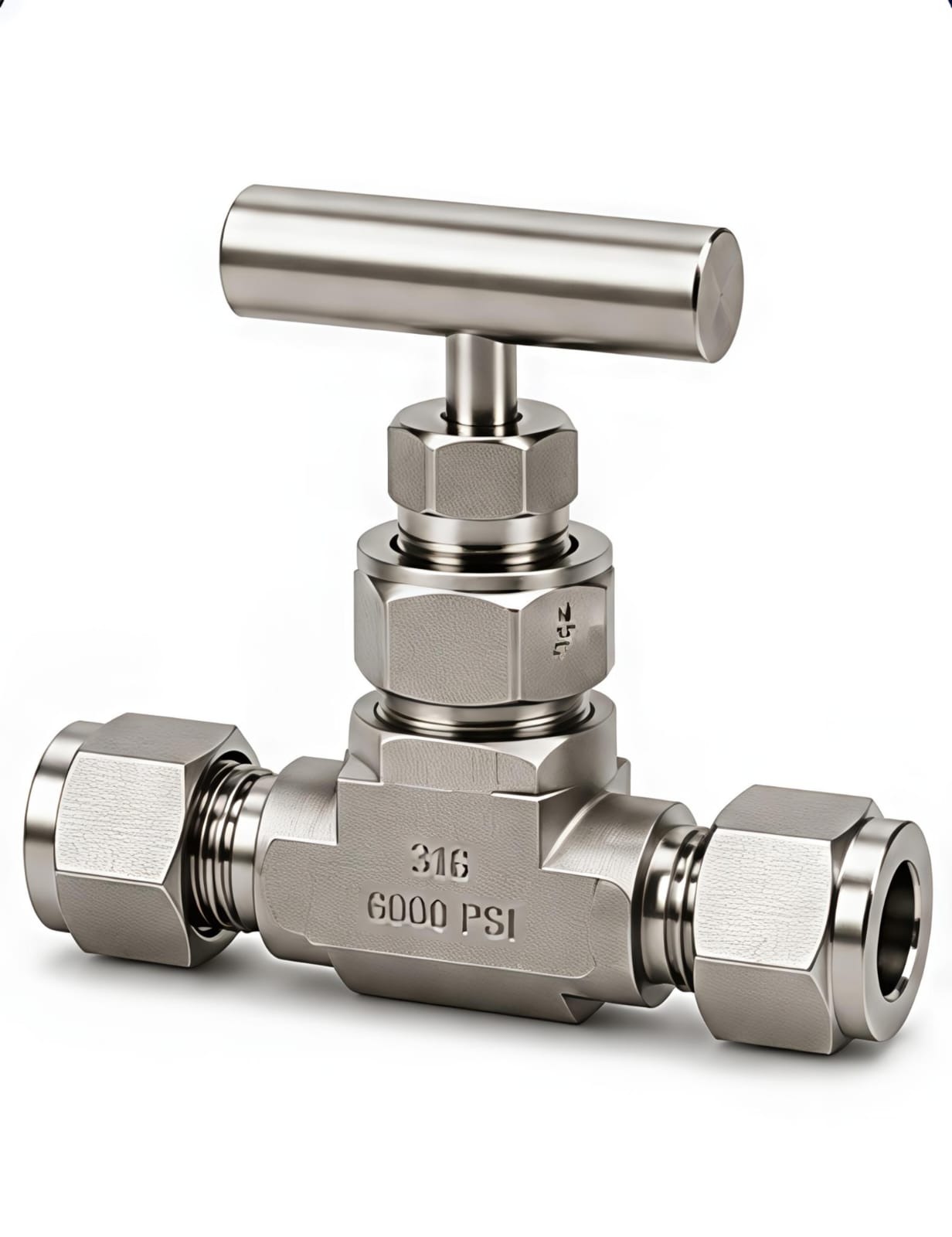

RAW matNfab Needle Valve is used for High pressure with relatively low flow rates & used for small Ports within Pipeline to start, Stop and regulate Flow of Liquid or Gases. It is an assembly of precision designed components as Body, Spindle, Bonnet, Handle & packing material. It is a straight Valve with End connections available as Male/ Female Threads or Tube OD for connecting directly on Tubing.
RAW matNfab Needle Valve is used for High pressure with relatively low flow rates & used for small Ports within Pipeline to start, Stop and regulate Flow of Liquid or Gases. It is an assembly of precision designed components as Body, Spindle, Bonnet, Handle & packing material. It is a straight Valve with End connections available as Male/ Female Threads or Tube OD for connecting directly on Tubing.

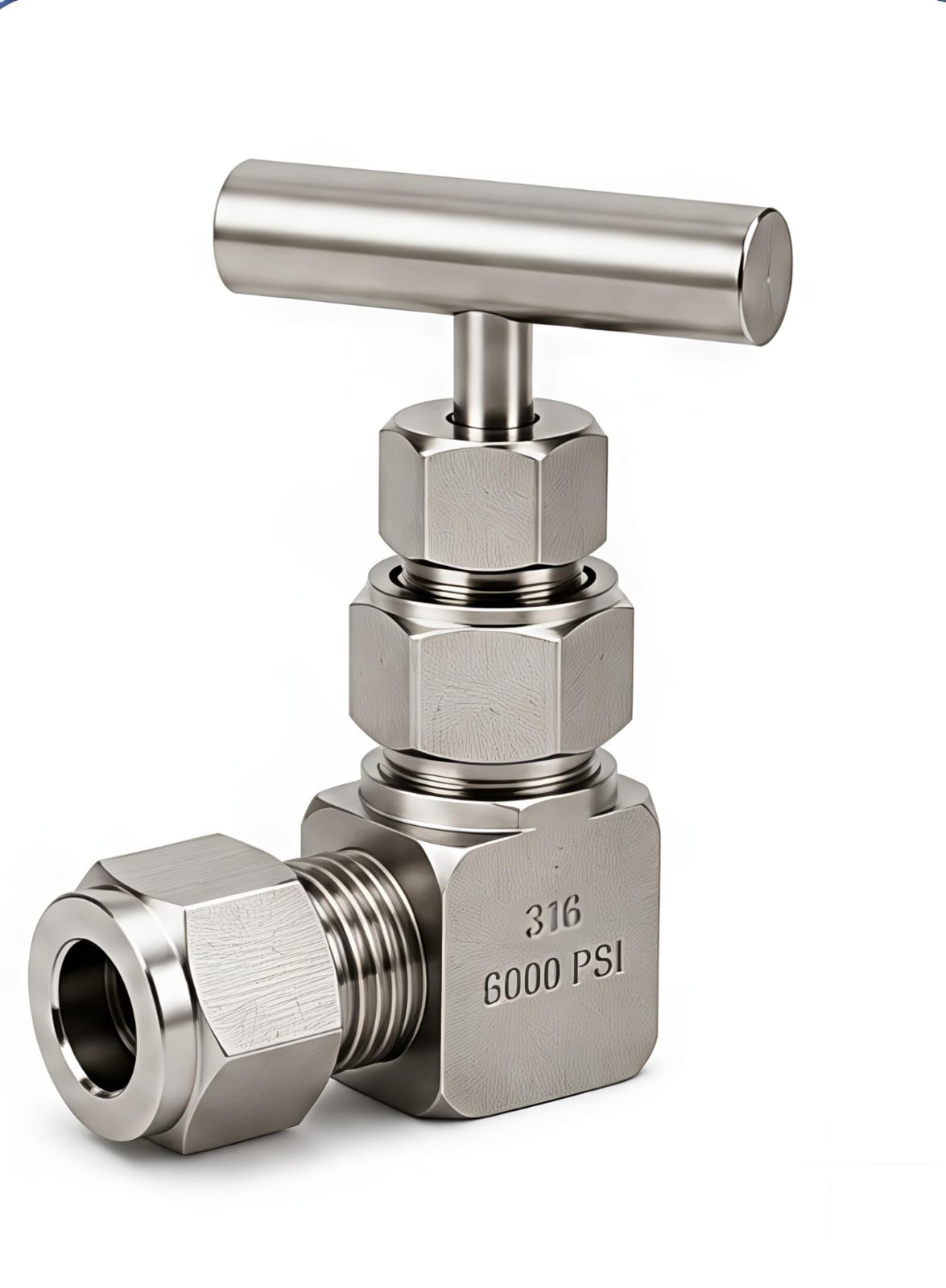

RAW matNfab Angle Needle Valve has both end connections in 90 Degree Angular position. It is used for High pressure with relatively low flow rates & used for small Ports within Pipeline to start, Stop and regulate Flow of Liquid or Gases. It is an assembly of precision designed components as Body, Spindle, Bonnet, Handle & packing material. It is a straight Valve with End connections available as Male/ Female Threads or Tube OD for connecting directly on Tubing.
