ITEM DESCRIPTION:

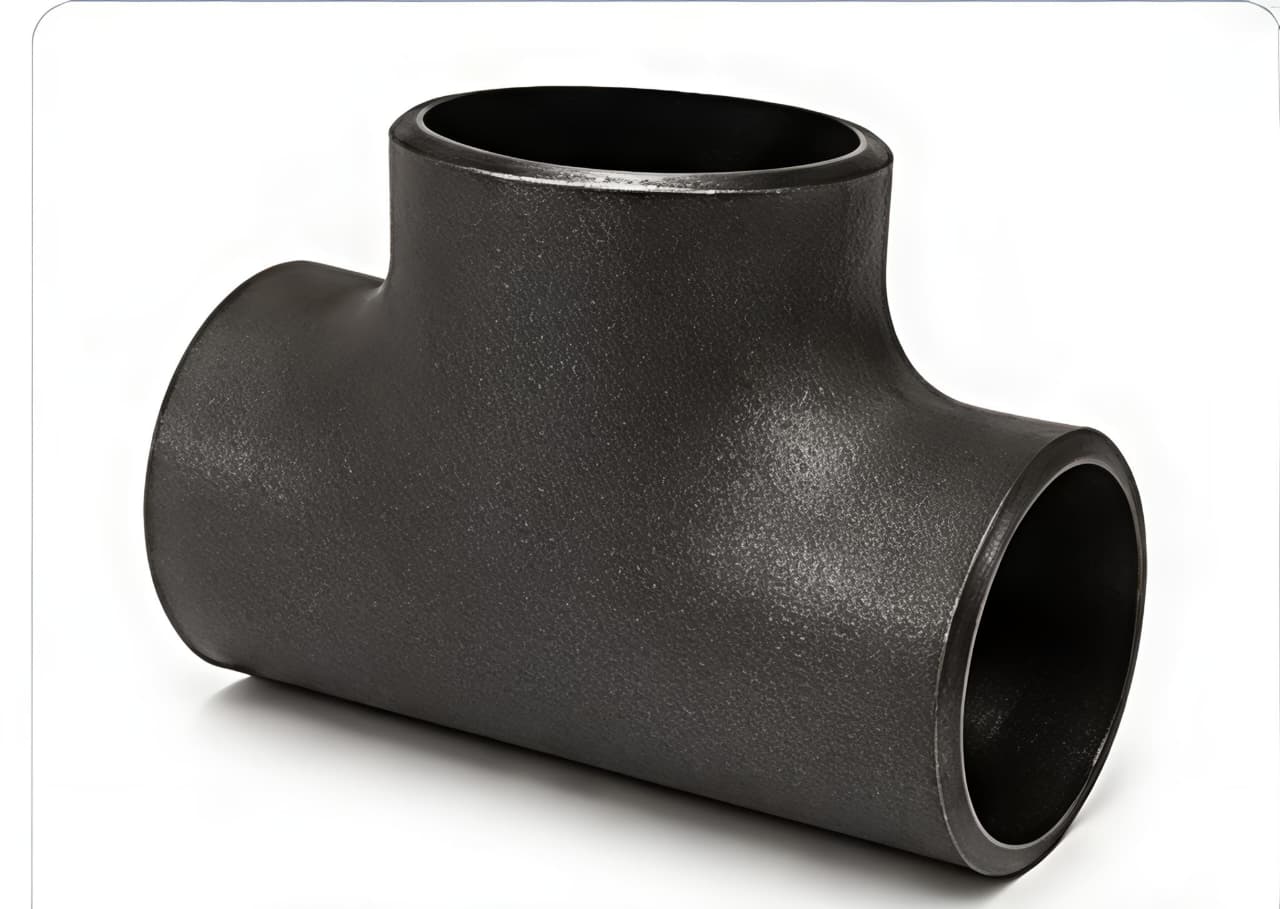

RAW metNfab are widely recognized throughout the world as a trustworthy Manufacturer and timely Exporter of high-quality Equal Tee. They are used to change the direction of pipe runs as well as to connect pipes of different diameters to other pipe runs. These are ideal for services that require high temperatures in any industry. We are manufacturing and supplying the same to our esteemed clients in a variety of specifications that include standards, schedules, sizes, forms, types, wall thickness, and dimensions, amongst other characteristics. Additionally, these tees are manufactured and provided to clients according to their specific requirements as well as the specifications that we provide.
METAL GRADE:
Nickel Alloy
ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)
Stainless Steel
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304, 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H.
Carbon Steel
ASTM / ASME A 234 WPB, WPC ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 and WPHY 70.
Alloy Steel
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91.
Duplex Steel
ASTM / ASME SA 815 UNS NO. S 31803, S 32205, S 32550, S 32750, S 32760.
DIMENSION STANDARD:
ANSI B16.9, B16.28, B2.1 NPT, MSS-SP-43, MSS SP-48, SP 97, B36.10
SIZE:
1/2" NB TO 72" NB WELDED BW (ELBOWS & TEES TWO HALVES & REDUCER WITH ONE SEAM LONGITUDINAL WELDED WITH 100% R.T)
SCHEDULE:
SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS.
Type
Seamless / ERW / Welded / Fabricated
